SC APC Module 1x32 PLC Fiber Optic Splitter ABS Box 2.0mm 3.0mm

Ask Lasest Price
Brand Name :	DAMU
Model Number :	*ABS 132A**
Certification :	CE
Supply Ability :	20000pcs/day

Add to Cart

Product Details
Company Profile

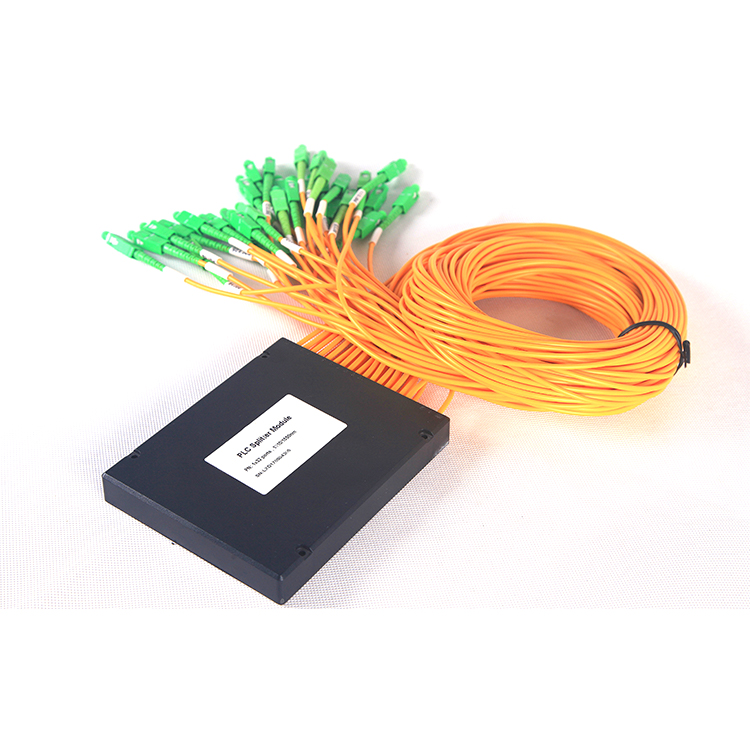

SC APC Module 1x32 PLC Fiber Optic Splitter ABS Box 2.0mm 3.0mm

1*32 SCAPC ABS Box Type Module 1x32 PLC Fiber Optic Splitter in ABS Box 2.0mm 3.0mm

Product Description:PLC splitter is an optical power distribution device based on the
integrated waveguide of quartz plate. With the features of small
size, wide range of operating wavelength, stable reliability and
good uniformity, It’s widely used in PON,ODN,FTTX point to connect
between termination device and central office to achieve the signal
splitter.

Features:
- Good uniformity and low insertion loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Stability Telcordia GR-1221 and GR-1209
- High Reliability and Stability

Applications:
1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution

Compliance:
1) Telcordia GR-1209-CORE-2001
2) Telcordia GR-1221-CORE-1999
3) RoHS

Parameters
1×2
1x4
1x8
1x16
1x32
1x64
1x128
Operating Wavelength(nm)
1260～1650
Insertion Loss (dB)(P/S rade)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/ 16.9
20.5/ 21.0
24.2/ 24.5
Loss Uniformity(dB)
0.4
0.6
0.8
1.2
1.5
2.0
2.5
Return Loss (dB)(P/S Grade)
55/50
Polarization Dependent
0.2
0.2
0.2
0.25
0.3
0.35
0.5
Directivity (dB)
55
Wavelength Dependent
0.3
0.3
0.3
0.5
0.5
0.5
0.5
Temperature Stability(-40～8℃)
0.4
0.4
0.4
0.5
0.5
0.5
0.5
Operating Temperature(℃)
-40～85
Storage Temperature(℃)
-40～85
Module Dimension (mm)(L×W×H)
100×80×10
120×80×18
140×115×18
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our
company mainly produces optical fiber box.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20
days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning
qualified.If there is any fault for our products within the free
warranty period, we will repair it and change the fault assembly
for free.
