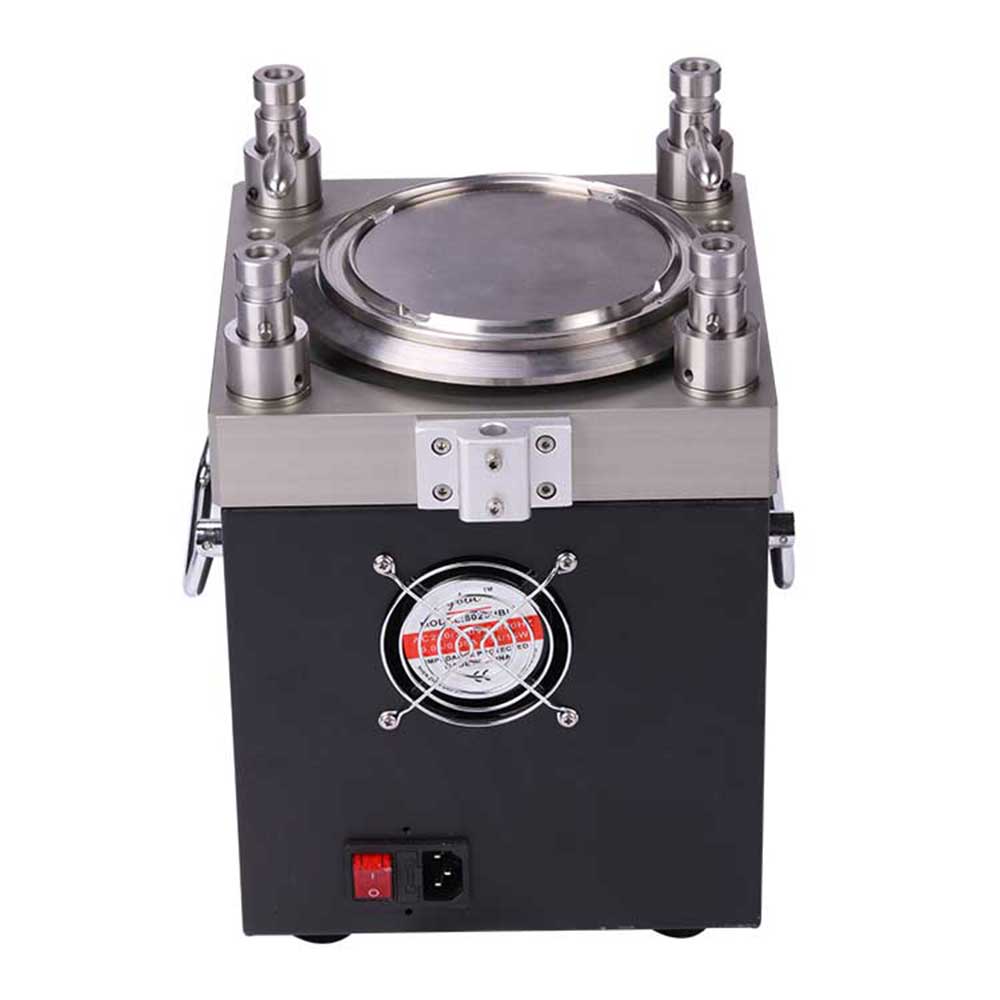

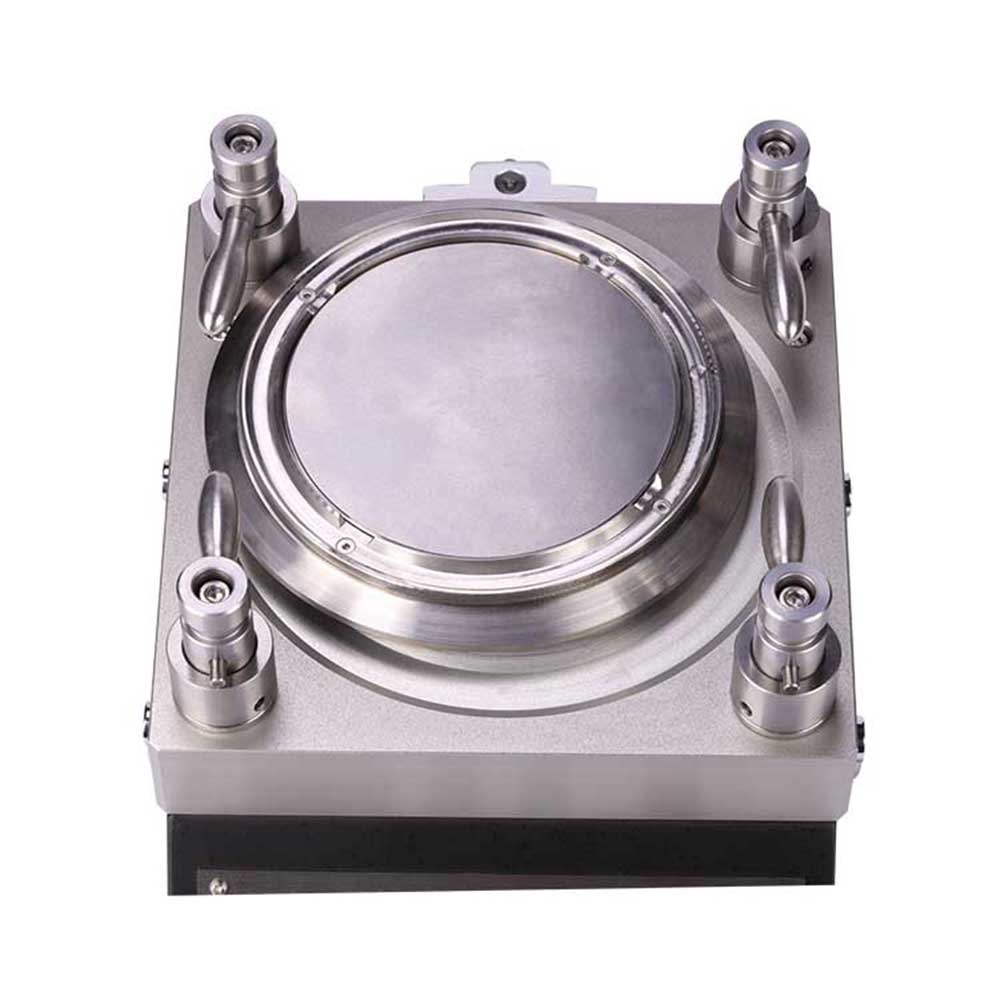

Fiber optic polishing machine
Fiber optic polishing machine is mainly used to process the fiber
end face of the fiber optic products,
Such as fiber patch cord, pigtail, energy fiber, plastic optical
fiber devices, embedded short ferrules and so on.
The in optical communication industry application is very wide,
usually several optical grinding machine and curing oven end
inspection instrument pressure tester machine and other equipment
tools composed of one or more production lines, to production of
optical fiber jumper, pigtail, embed short ferrule, passive
devices.
Key Features:
1.Dual APC & PC polishing
2.Designed for high volume manufacturing
3. Accommodates most styles of connectors
4. Quick change tooling
5. APC back reflection as low as -70 dB UPC back reflection as
6. Insertion loss 0.2 dB typical
7. Super centering accuracy
8. Low undercut
9.Excellent connector endface polishing quality
10.Customized different Grinding fixtures
11.Material :2316 steel
12. And four corners is a good choose if want to get 3D end-face
| Machine size : | 250mm*2600mm*280mm |
| Net weight:: | 24kg |
| Polish disc: | 127mm |
| Polish speed: | 60rpm |
| Power: | AC110/220 50/60Hz |
| Insert loss | 0.2-0.3dB |
| Return loss | 50-70dB |
| motor | 2pcs Japanese Panasonic motors |
Maintenance
In order to keep the machine in stable and normal status, should
fulfill manitenance when the machine finish operating.
- After the machine finishes operating, or stop for certain time,
must clean all polishing liquid completely, otherwise the liquid
will get dry and leave hard stain, which will cause trouble for
next polishing.
- If the machine keeps no running for long time, need clean the
holder in ultra-sonic cleaner, then paste rusty-proof lubrication,
stored in specified tooling box.
- The lifetime of polishing paper is varied on paper’s specification
and polishing process.
- Should inspect lubrication status of moving parts and add
lubrication periodly, advice maintenance of lubrication,
rusty-proof paste with NLGIZ level lubrication monthly.
- Should inspect cooling fan, assure no stuck for dirt, clean dirt
and stain over fan to keep smooth cooling system.
- Observe belt’s tension: Open box, will be able to see belt
connected to gear moter, adjust motor-locating board’s position,
vary belt tension. If found polishing plate is unable to rotate
evenly or skid occur, then need tension the belt, but not
over-tension that bring over-load to driving structure and big
noise.
- Oberve lubrication under polishing plate, replace / add lubrication
periodly.
- Protect the polishing plate and brass-ring from contamination and
impact.
