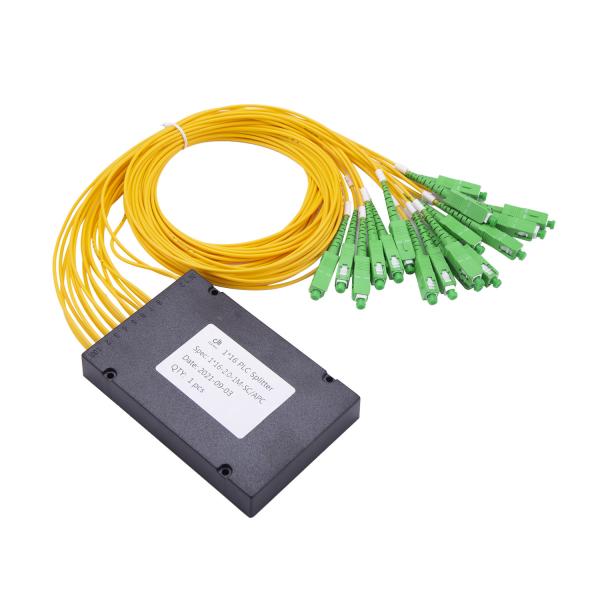

    1x16 ABS Box Optical Fiber Splitter , SC / APC Connector Fiber Optic PLC Splitter

    Ask Lasest Price
    Brand Name : DAMU
    Model Number : ABS 1*16A
    Certification : CE
    Supply Ability : 20000pcs/day
    • Product Details
    • Company Profile

    1x16 ABS Box Optical Fiber Splitter , SC / APC Connector Fiber Optic PLC Splitter

    1x16 abs box with SC/APC connector optical fiber splitter fiber optic PLC splitters

    Product Description:

    Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.


    Features:

    1) Low Insertion loss
    2) Low PDL
    3) Compact Design
    4) Good channel-to-channel uniformity
    5) Wide Operating Wavelength:From 1260nm to 1650nm
    6) Wide Operating Temperature: From -40℃ to 85℃
    7) High Reliability and Stability


    Applications:

    1) FTTX Systems
    2) PON Networks
    3) CATV Links
    4) Optical Signal Distribution


    Compliance:

    1) Telcordia GR-1209-CORE-2001
    2) Telcordia GR-1221-CORE-1999
    3) RoHS


    Parameters
    1×2
    1x4
    1x8
    1x16
    1x32
    1x64
    1x128
    Operating Wavelength(nm)
    1260~1650
    Insertion Loss (dB)(P/S rade)
    3.8/4.0
    7.1/7.3
    10.2/10.5
    13.5/13.7
    16.5/ 16.9
    20.5/ 21.0
    24.2/ 24.5
    Loss Uniformity(dB)
    0.4
    0.6
    0.8
    1.2
    1.5
    2.0
    2.5
    Return Loss (dB)(P/S Grade)
    55/50
    Polarization Dependent
    0.2
    0.2
    0.2
    0.25
    0.3
    0.35
    0.5
    Directivity (dB)
    55
    Wavelength Dependent
    0.3
    0.3
    0.3
    0.5
    0.5
    0.5
    0.5
    Temperature Stability(-40~8℃)
    0.4
    0.4
    0.4
    0.5
    0.5
    0.5
    0.5
    Operating Temperature(℃)
    -40~85
    Storage Temperature(℃)
    -40~85
    Module Dimension (mm)(L×W×H)
    100×80×10
    120×80×18
    140×115×18

    Product Highlights


    Premium Fiber Splitter Guarantees Stable Transmission
    With compact structure and bending insensitive cables, the ABS Module Splitter takes less
    distortion during use, which ensures reliable optical transmission.

    Bend Insensitive Fiber
    G.657A1 cables with 10mm min.bend radius allow tighter or bending cable routing.

    Nano-zirconia Ceramic Ferrules
    Nano-zirconia Ceramic Ferrules
    Nano-zirconia ceramic ferrules provide 10.5dB max.IL and 55dB min.RL.

    SC/UPC Connectors
    The fibers contain SC/UPC connectors for plug and play, no need to splice.
