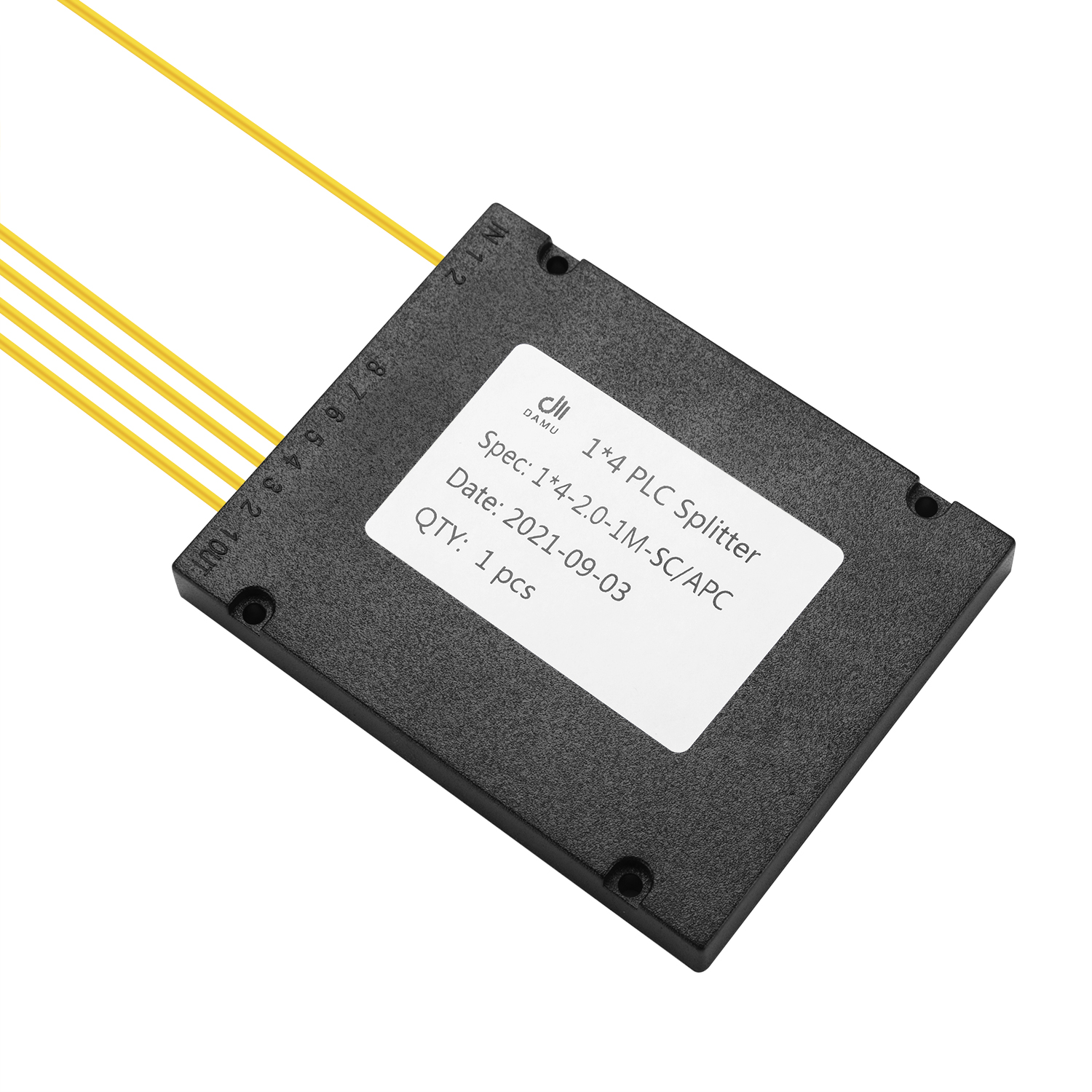

2.0mm 3.0mm 1m 1.5m 1X4 SC / APC ABS Box Splitter With Number Ring Label

1X4 SC/APC ABS box type 2.0mm or3.0mm 1m 1.5m cable length with number ring label

Planar lightwave circuit (PLC) splitter is a type of optical power
management device that is fabricated using silica optical waveguide
technology to distribute optical signals from Central Office (CO)
to multiple premise locations.

Pigtailed ABS splitter is most commonly used in the PON networks.
It provides the complete protection for inner optical components
and cable, as well as designed for the convenient and reliable
installation, but its volume is relatively large. It's mainly used
for various connection and distribution products(outdoor fiber
distribution box) or network cabinets.
specification
1x4
1x8
1x16
Return loss
>55
>55
>55
Insert loss
<7.4
<10.7
<13.9
Pigtail Diameter:

0.9mm
0.9mm
0.9mm
Fiber type
G657A1
G657A1
G657A1
Fiber length
0.3M
0.3M
0.3M
connector type
SC
SC
SC
operating temperature
-40~85
-40~85
-40~85
storage temperature
-40~85
-40~85
-40~85
operating wavelength
1260~1650NM
1260~1650NM
1260~1650NM
