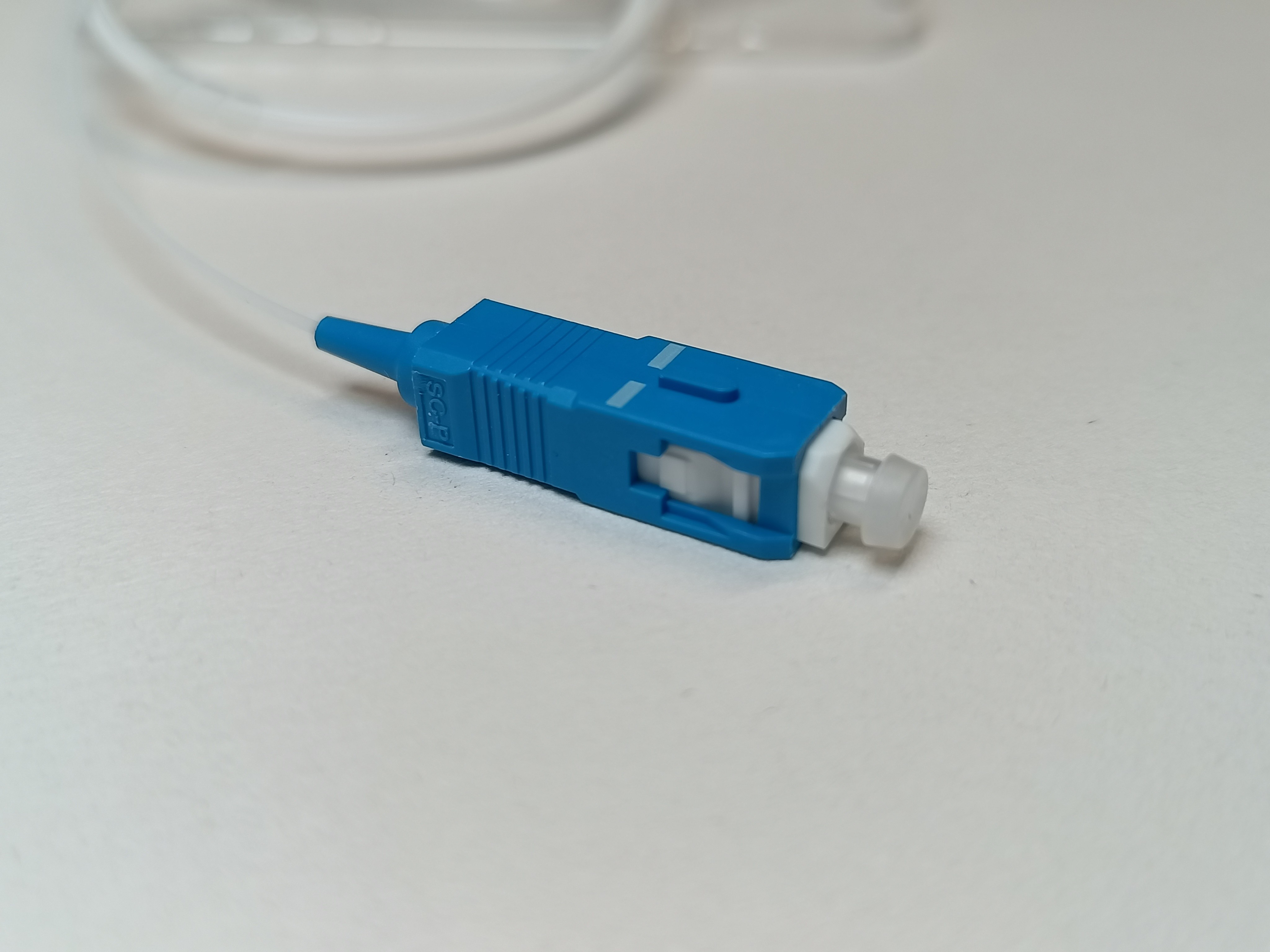

Mini Fiber Optic PLC Splitter SC/UPC Connector SM G657A1 1x8 Splitter Optic PLC

Specification

Features

*Excellent Mechanical,Small Size

*High Reliability

*Low insertion Loss and low Polarization Dependent loss

*High channel counts

*Excellent Environmental Stability and Widely Used

Applications
*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON)

Splitter 1.5meters

Parameter		Unit		1×2	1×4	1×8	1×16	1×32	1×64
Fiber Type		/		G.657A, or customized
Operating Wavelength		nm		1260~1650
Insertion Loss	P	Max	dB	4.0	7.0	10.4	13.5	16.8	20.5
	S	Max	dB	4.2	7.3	10.6	13.8	17.1	20.8
PDL		Max	dB	0.2	0.3	0.3	0.3	0.3	0.5
Loss Uniformity		Max	dB	0.6	0.8	1.0	1.4	1.6	2.0
Return Loss		Min	dB	55(P Grade)/50(S Grade)
Directivity		Min	dB	55
Operating Temperature		℃		-40 ~ +85
Storage Temperature		℃		-40 ~ +85
Dimension(L×W×H)			mm	40×4×4			50×7×4		60×12×4
Remark: The above parameters do not include connectors; If connectors are added, the insertion loss will increase 0.2dB each.
