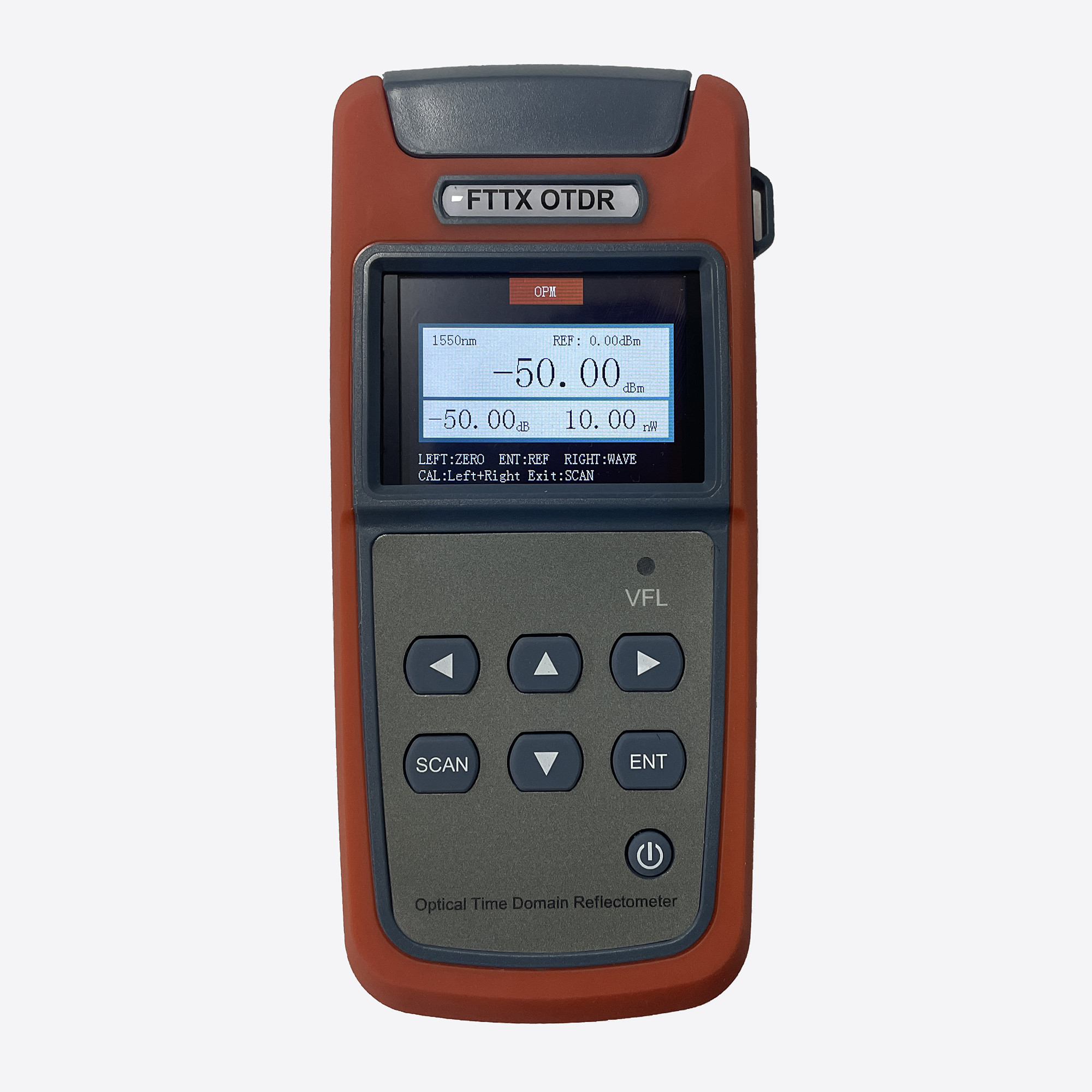

MINI OTDR

(Optical Time-Domain Reflectometer)

Product Overview

Mini OTDR is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the OTDR fiber ranger detect fiber faults location more accurate and easier.

Main Characteristics

*Portable, rugged, lightweight; Easy to use.
*More accurate testing results and better repeatability.
*Automatic Pulse Width Control design to ensure a convenient operation.
*Easy to identify the faults location.
*Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.
*Dust, water and shock proof, designed for field use.
*Long battery life, up to 5000 measurements operation.
*2.6 inch screen, data saves in SOR format.

1.Technical Specifications

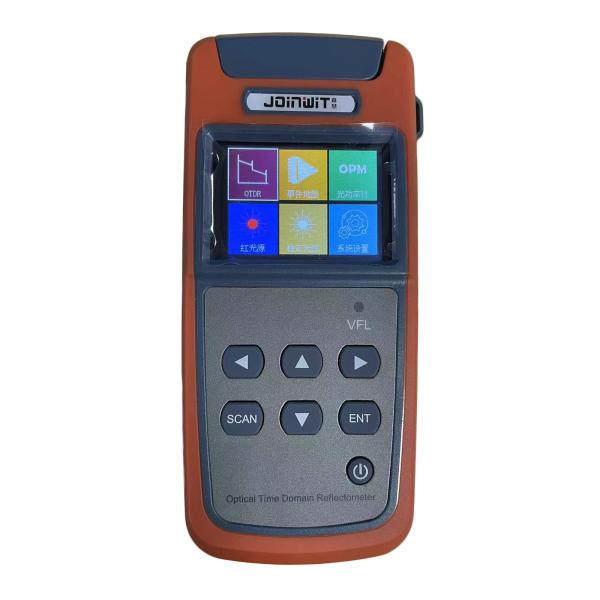

2.Button Description

1,: On / off key, when in power-on, short press switch to auto-off function ；long press about 3s off. When the top right corner of LED show,The instrument will automatically shut down for about 10 minus in the state of no key operation.

2,SCAN, Start OTDR module to test the fiber. Press about 6s, enter auto cycle test,press exit again3;

3▲-View the previous measurement or choose previous option

4 ▼-View the next measurement or choose next option

5,◄--View a measurement to the left or select an option to the left

6,►-View a measurement to the right or select an option to the right

7,ENT select the confirm butt

on or deselect

8,VFL light shows starting work

Configuration List

MINI OTDR

3pcs of dry battery.

USB, SC adapter;

Oxford instrument kit,

User manual
