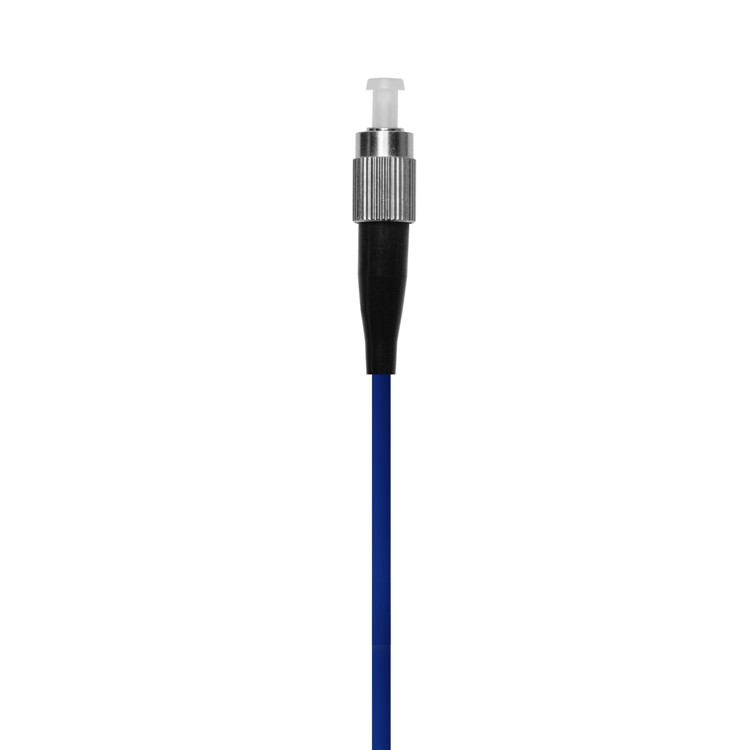

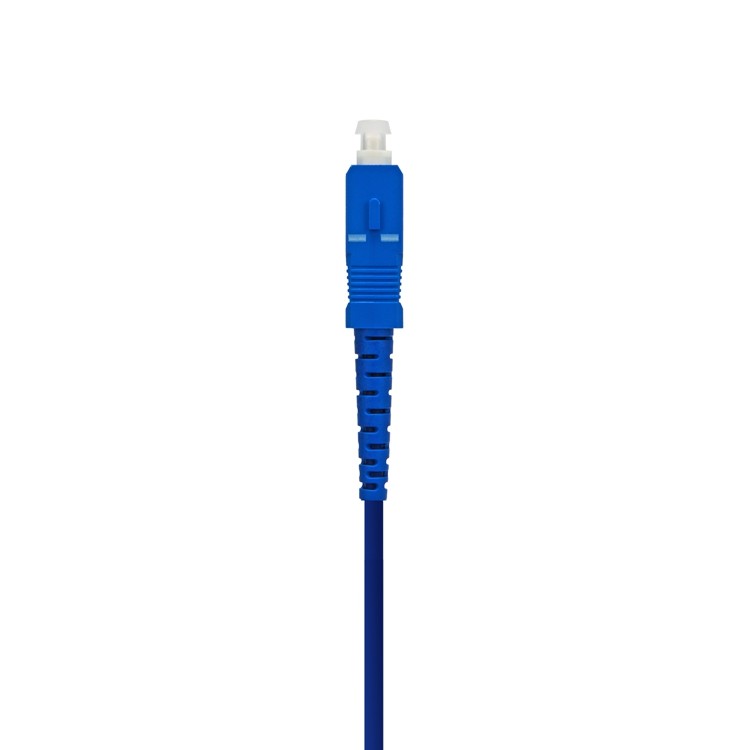

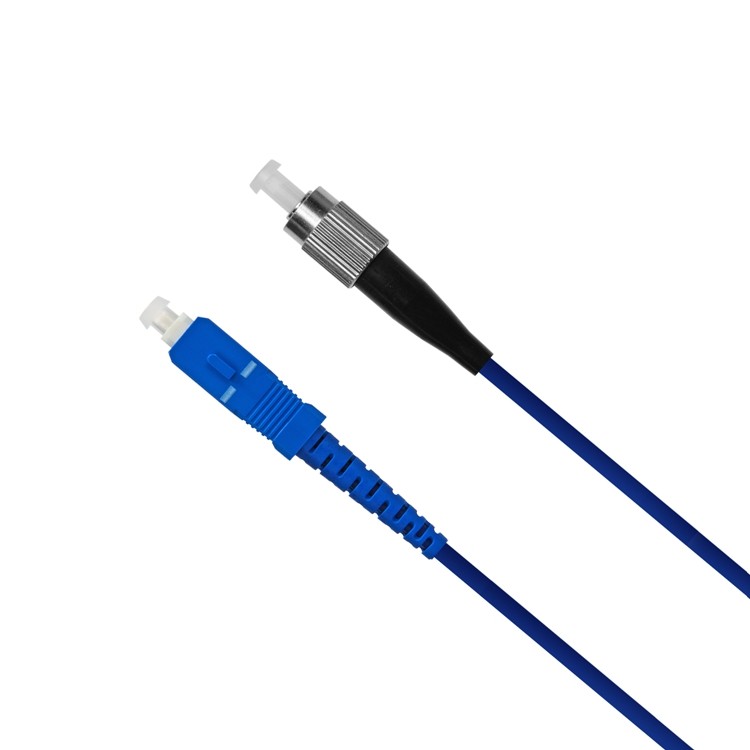

FC SC Fiber Optic Patch Cord , Simplex Fiber Jumper 3.0mm armoured

Product Description

FC-SC Fibre Optic Patch Cord Single mode simplex optica fiber jumper 3.0mm armoured

Optical patch Cord and pigtail is the basic parts for optical
transmission. They are consist of fiber optic cable and terminated
connector. Wolon has strong capacity and experience to support any
large demand.

Product detailsProductFC-SC Fibre Optic Patch Cord Single mode simplex optica fiber
jumper 3.0mm armoured
Pre-Terminated ConnectorFC to SC
PolishedUPC or APC
Fiber Count2 Fibers or other for options
Fiber ModeSM or MM
Jacket ColorBlue, Black
Breakout OD2.0mm, 3.0mm
Insertion Loss< 0.2 DB
Return Loss>50db
Jacket MaterialsPVC LSZH
Product KeywordsArmored Fiber Opitc Patch Cord

Characteristics
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4,
SMA
2) Ferrule End-face: PC, UPCAPC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores,
24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored

Features:
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
Characteristics
Applications
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications
