Hot Stripping Clamp FTTH fiber optic network cable stripper Automic
Optical Fiber
Safety precautions
This product has been designed and manufactured to assure personal
safety.Improper use can result in body injury and serious damage to the thermal stripper,please read and observe all instructions given in this operation
manual.
Warning sign, this product has signs as below, please read
carefully and understand it.
Warning sign
Please read carefully before use warnings and precautions
1.Preface
Thank you very much for purchasing the single-core thermal stripper
produced by our company. The product with compact and light-weight
design, easy to operate and reliable. Through vertical stripping,
the applied force is light and stripping quality high. The blade is
durable and easy to replace. Adopt guide groove and thermal
stripping way to ensure no damage to the fiber, featuring easy and
fast way to remove the coating layer. Please read the instruction
manual carefully before use, and store the manual near this product
to facilitate reading.
2.Introduction
◆Product specifications and main technical parameters
| Main technical parameters |
| Stripped Length | Max. 30mm |
| Heating Mode | Normal mode |
| Power-saving mode |
| Temperature Setting | Four Temp.: 80℃,100℃,120℃,130℃ |
| Power Supply | DC 12V2A |
| Dimensions | 92.5(L) X 46(D) X 31.5(H) mm |
| Weight | 260g |
| Environmental requirements | Humidity below 85% |
◆ Applicable fiber
| Applicable Fiber |
| Fiber type | Silica fiber |
| Coating material | UV hardened resin |
| Fiber- and coating thickness | ≤0.9mm |
| Fiber diameter | 80-400μm |
◆ Standard configuration
| Items | Model | Quantity |
| Single-core fiber thermal stripper | JX-240 | 1 |
| Blade(installed) | JX-2C | 2 |
| Power adapter | AC220/DC12 | 1 |
| Operating Manual | | 1 |
1.Power
Press the "Power" button for 1 second, then release, the power
indicator is on; press and hold "Power" button 2-3 seconds, then
release,the power light is off.
2.Temp
Temperature control for heating, the product control panel on the
"temperature" button corresponding to 60 ℃, 80 ℃, 100 ℃ and 120 ℃
from the bottom up. When the red light is on, it means the
temperature set successfully. Default temperature is 100 ℃, when
the power is on. The temperature increments, when press "temp" on
the control panel each time.When the temperature reaches 130 ℃,
press "temp" ,the temperature returns to 80 ℃.
3.Mode
The device has two modes:
1> Normal mode After power on, the heating element keeps the
heating state, is able to work, constantly, and shorten the heating
time til the power is off.
2> Power-saving mode After fiber cover is closed, heating
starts; when the fiber cover is opened, the heating stops.
The default mode is power-saving mode, after the power is on.
Clicking the Mode on the control panel switches between two modes.
4.Heating indicator:
Heating status When the indicator is red, the device is in heating
state, when the light turns green, the heating temperature has
reached the set temperature, then you can start to strip the fiber.

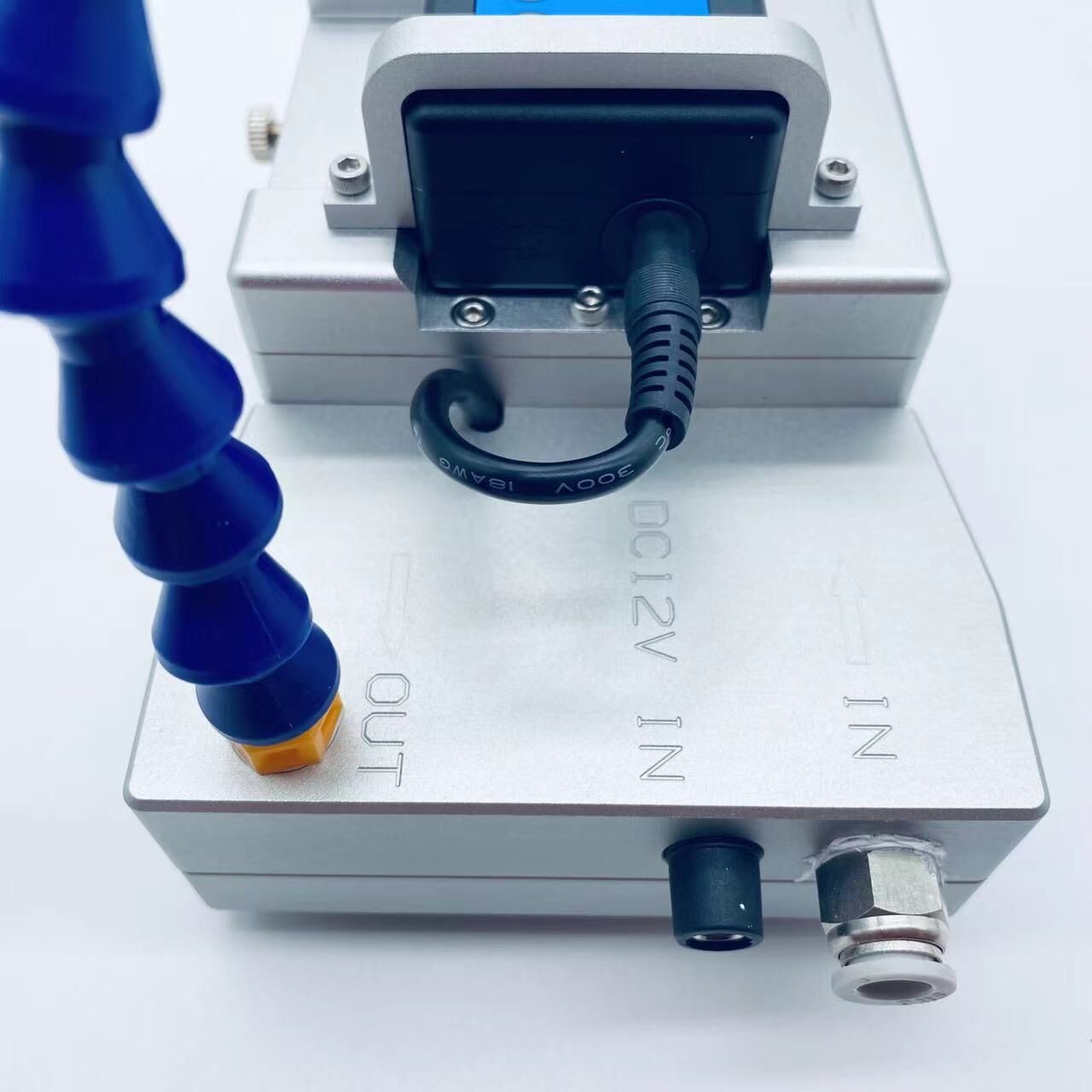

4 .Power supply
Adopt DC12V2A power adaptor
