    DAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing Machine

    Ask Lasest Price
    Brand Name : DAMU
    Model Number : DM-AI-7C
    Certification : CE ROSH ISO9001
    Payment Terms : T/T
    Supply Ability : 3000Set/Month
    Delivery Time : 5-8
    • Product Details
    • Company Profile

    DAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing Machine

    Optical Fiber Fusion Splicer Fiber Optic Fusion Splicer AI-7C Splicing MachineDAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing MachineDAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing MachineDAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing MachineDAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing MachineDAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing MachineDAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing MachineDAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing MachineDAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing MachineDAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing MachineDAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing Machine

    Product Description
    Fiber Alignment
    Core/cladding alignment / Manual alignment
    Splicing Time
    8s
    Heating Time
    18s
    Heating Mode
    Automatic heating(Preheating)
    Focus Mode
    Auto focus
    Applicable Fibers
    SM(G.652&G.657),MM(G.651),DS(G.657), NZDS(G.655)
    Splice Loss
    0.025dB(SM),0.01dB(MM),0.04dB(DS/NZDS)
    Control Technology
    Real-time control and calibration of fusion ARC
    Return Loss
    Better than 60DB
    Fiber Diameter
    Cladding Diameter:80-150μm
    Coating Diameter:100-1000μm
    Fiber Cleave Length
    Coating less than 250µm:8-16mm
    Coating less than 250-1000µm:16mm
    Software upgrade
    Mobile APP update,Turn on Blue-tooth sync to the machine
    Lighting
    External

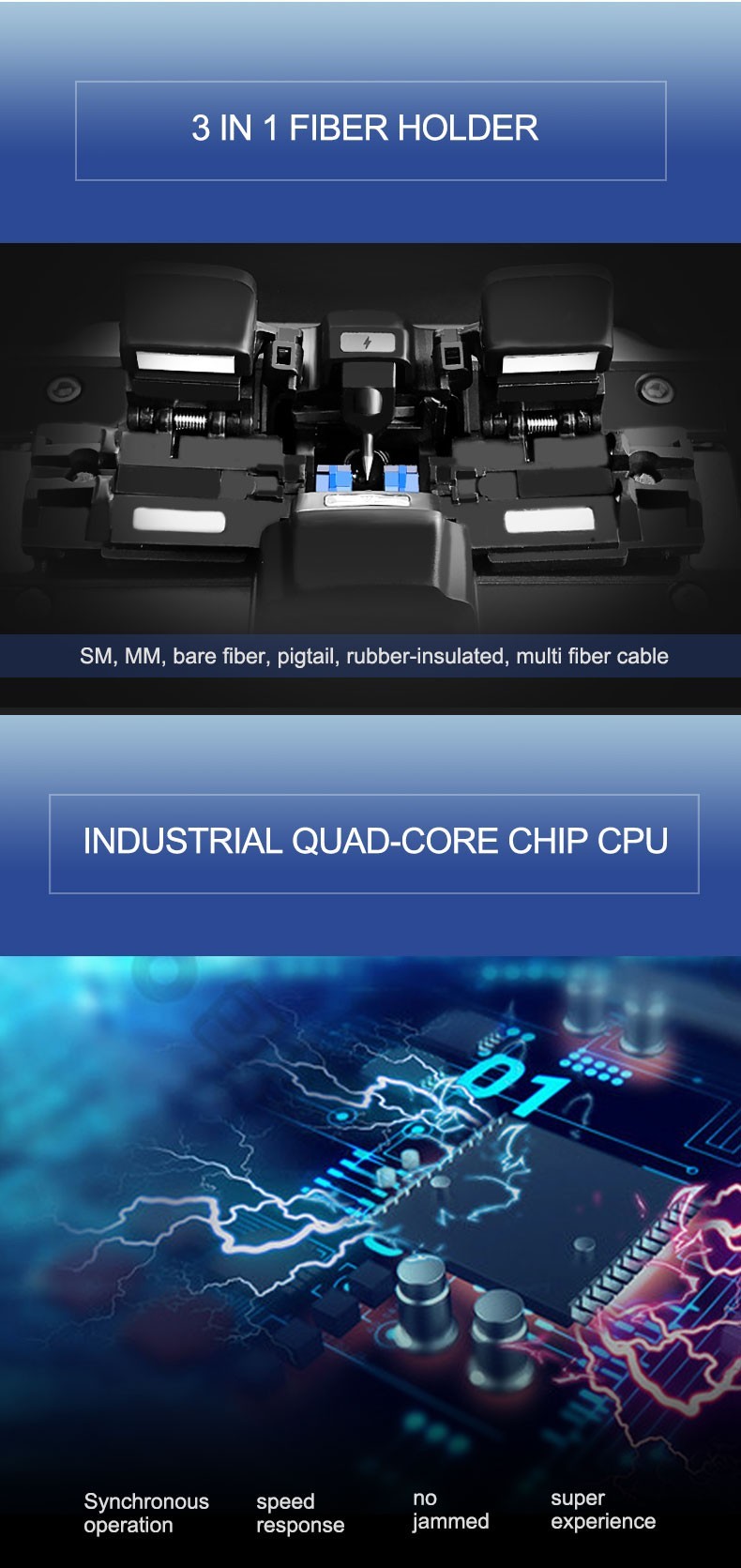

    Fiber Holders
    3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
    Magnification
    300 for X or Y view, 150 for X or Y view
    Screen
    5 inch TFT color display
    Splicing Mode
    Normal / high precision splicing
    Splicing Method
    Fully automatic,Step by step splicing
    Splicing Record Storage
    Synchronize to the phone, the server to cloud storage unlimited
    Built-in battery
    7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 260 times
    Power Supply
    Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power
    Operating Conditions
    Temperature -15 ~ +50 ℃, humidity: <95% RH (no condensation) Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s
    Shrinkable Tube
    60mm,40mm
    Optical Power Meter
    Wavelength:850nm,1300nm,1310nm,1490nm,1550nm,1625nm
    Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range)
    DAMU Fiber Optic Fusion Splicer , 8s Fiber Splicing Machine
    1.who are we?
    We are based in Guangdong, China, start from 2018,sell to Eastern Europe(18.00%),Western Europe(13.00%),Northern
    Europe(11.00%),South Asia(10.00%),North America(9.00%),Mid East(8.00%),Central America(7.00%),South America(7.00%),Eastern
    Asia(6.60%),Africa(5.00%),Domestic Market(2.20%),Southern Europe(1.20%),Oceania(1.00%),Southeast Asia(1.00%). There are total
    about 11-50 people in our office.

    2.how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    fiber optic polishing machine,fast connector,fiber optic polishing jig,fiber optic patch cord

    4.why should you buy from us not from other suppliers?
    12 years of experience advanced level in optical fiber equipment, we have OEM and ODM capabilities. We have always been in the
    leading position in the same industry with superb workmanship, excellent quality, good pre-sales and after-sales services.

    5.what services can we provide?
    Accepted Delivery Terms: FOB,EXW；
    Accepted Payment Currency:USD,EUR,CNY;
    Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
    Language Spoken:English,Chinese
