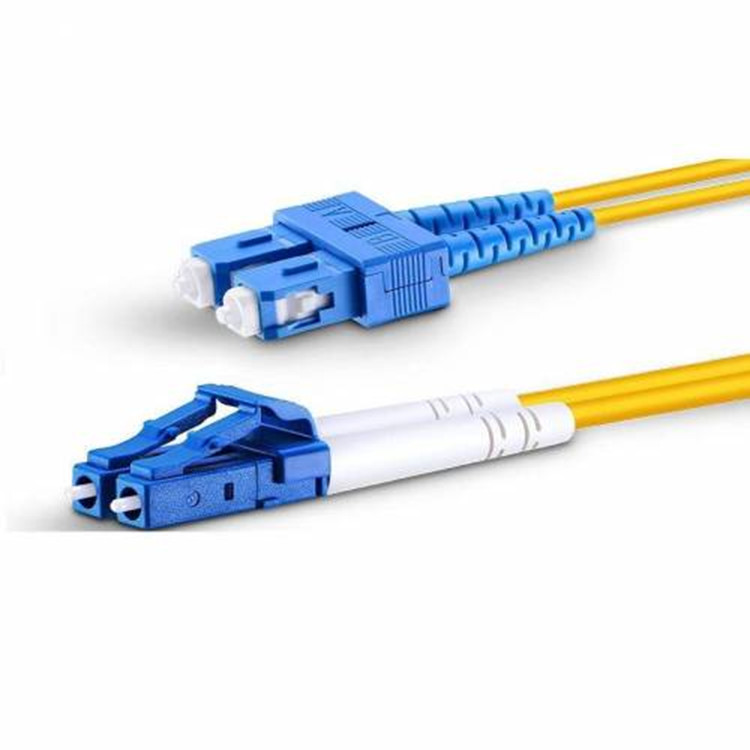

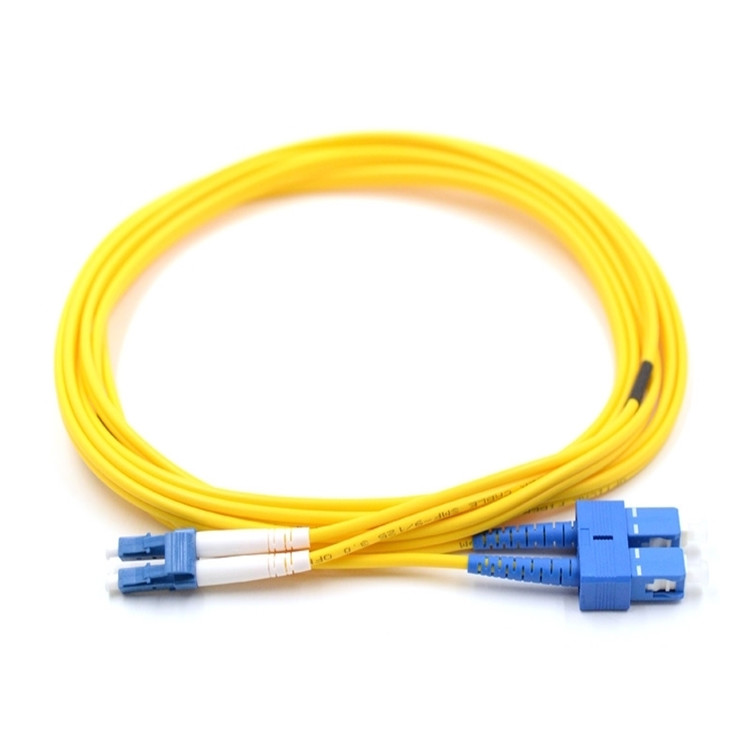

SC UPC-LC UPC Fiber Optic Patch Cord Single Mode Duplex 3.0mm G657A Lzsh Cable

Ask Lasest Price
Brand Name :	DAMU
Model Number :	DM-PC-LCPC
Certification :	CE ROSH ISO9001
Payment Terms :	T/T
Supply Ability :	500000/month
Delivery Time :	5-8

Add to Cart

Product Details
Company Profile

SC UPC-LC UPC Fiber Optic Patch Cord Single Mode Duplex 3.0mm G657A Lzsh Cable

Product Details

Connector Type	LC SC	Ferrule End-face	UPC
Fiber Type	G657A	Cable Type	LSZH
Cable OD	3.0mm	Cable Jacket	PVC/LSZH Outer Jacket
Cable Length	1M, 2M Or Customized	Cable Color	Customized
High Light	fiber optic jumper , fibre optic patch leads

Product Description

SC UPC-LC UPC Fiber Optic Patch Cord Single Mode Duplex 3.0mm G657A Lzsh Cable

Description:

Optical patch cord is a length of optical fiber with two ends adding connectors to connect beam path.

TTI patch cords assembled with various types of connectors (such as FC, SC, ST, LC, MU, MTRJ,MPO etc.)

There are three kinds of polishing ferrule end-face: PC, UPC and APC .We employ advanced technique and equipment to manufacture so as to ensure the high quality of mass production.

Features:

Low Insertion Loss
High Return Loss
Good Repeatability
Good Exchangeability
High Temperature Stability

Application:

Optical Fiber Communication Systems
Optic-fiber Data Communications
Optic-fiber Data Communications
Optic-fiber Access Networks
LAN Optic-fiber Sensors

Specification:

Multimode fiber optic patch cord
Fiber type	OM1(62.5/125μm) ; OM2(50/125μm) ; OM3(50/125μm-150; 50/125μm-300)
Operating Wavelength	850 nm
Jacket material	PVC/LSZH/OFNP
Diameter of fiber	0.9/2.0/3.0mm
Contector	SC LC or customized
polishing method	PC	UPC	APC
Insertion loss (IL)	≤0.2dB	≤0.2	≤0.3
Return loss (RL)	≥45dB	≥50dB	≥60dB
Repetitiveness	≤0.1dB
Exchangeability	≤0.2
Durability	>1000 times
Operating Temperature(ºC)	-40~85
Storage Temperature(ºC)	-40~85
length	customized

Order Information:

Fiber Optic Patch Cord
Connector Type	Ceramic Ferrule End Face	Cable Diameter	Simplex/Duplex	Single mode /Multi-mode	Length
FC	PC/UPC/APC	Φ0.9, Φ2,Φ3	Simplex/Duplex	SM/MM	Customized
SC	PC/UPC/APC	Φ0.9, Φ2,Φ3	Simplex/Duplex	SM/MM	Customized
ST	PC/UPC	Φ0.9, Φ2,Φ3	Simplex/Duplex	SM/MM	Customized
LC	PC/UPC	Φ0.9, Φ2	Simplex/Duplex	SM/MM	Customized
MU	PC/UPC	Φ0.9, Φ2	Simplex/Duplex	SM/MM	Customized
MTRJ	PC/UPC	Φ0.9, Φ2	Duplex	SM/MM	Customized
