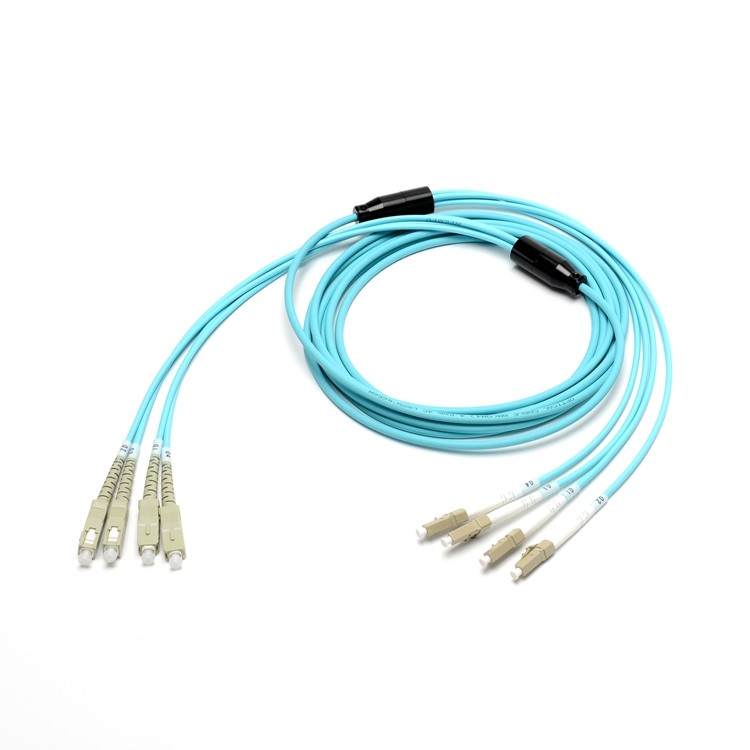

4 Core Sc Lc Fiber Patch Cord Armoured Multi Mode OM3 PVC LSZH 3.0mm

Product Description

SC-LC Fiber Optic Patch Cord armoured Multi mode 4 Core OM3 PVC LSZH 3.0mm

Optical patch Cord and pigtail is the basic parts for optical
transmission. They are consist of fiber optic cable and terminated
connector. Wolon has strong capacity and experience to support any
large demand.

Product detailsProductSC-LC Fiber Optic Patch Cord armoured Multi mode 4 Core OM3 PVC
LSZH 3.0mm
Pre-Terminated ConnectorSC to LC
PolishedUPC or APC
Fiber Count2 Fibers or other for options
Fiber ModeSM or MM
Jacket ColorBlue, Black
Breakout OD2.0mm, 3.0mm
Insertion Loss< 0.2 DB
Return Loss>50db
Jacket MaterialsPVC LSZH
Product KeywordsArmored Fiber Opitc Patch Cord

Characteristics
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4,
SMA
2) Ferrule End-face: PC, UPCAPC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores,
24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored

Features:
Low insertion loss and back reflection loss
Good echangeabilityGood Durability
High temperature stability
Characteristics
Applications
CATV
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTX applications

4 Core Sc Lc Fiber Patch Cord Armoured Multi Mode OM3 PVC LSZH 3.0mm

Product Tags:

4 Core Sc Lc Fiber Patch Cord

Sc Lc Fiber Patch Cord Armoured

fiber patch cord sc to lc OM3

4 Core Sc Lc Fiber Patch Cord Armoured Multi Mode OM3 PVC LSZH 3.0mm
