24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc

    Buy cheap 24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc from wholesalers

    Buy cheap 24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc from wholesalers
    • Buy cheap 24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc from wholesalers
    • Buy cheap 24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc from wholesalers
    • Buy cheap 24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc from wholesalers

    24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc

    Ask Lasest Price
    Brand Name : DAMU
    Model Number : DM-PC-LCLC
    Certification : CE ROSH ISO9001
    Payment Terms : T/T
    Supply Ability : 500000/month
    Delivery Time : 5-8
    • Product Details
    • Company Profile

    24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc

    Product Description

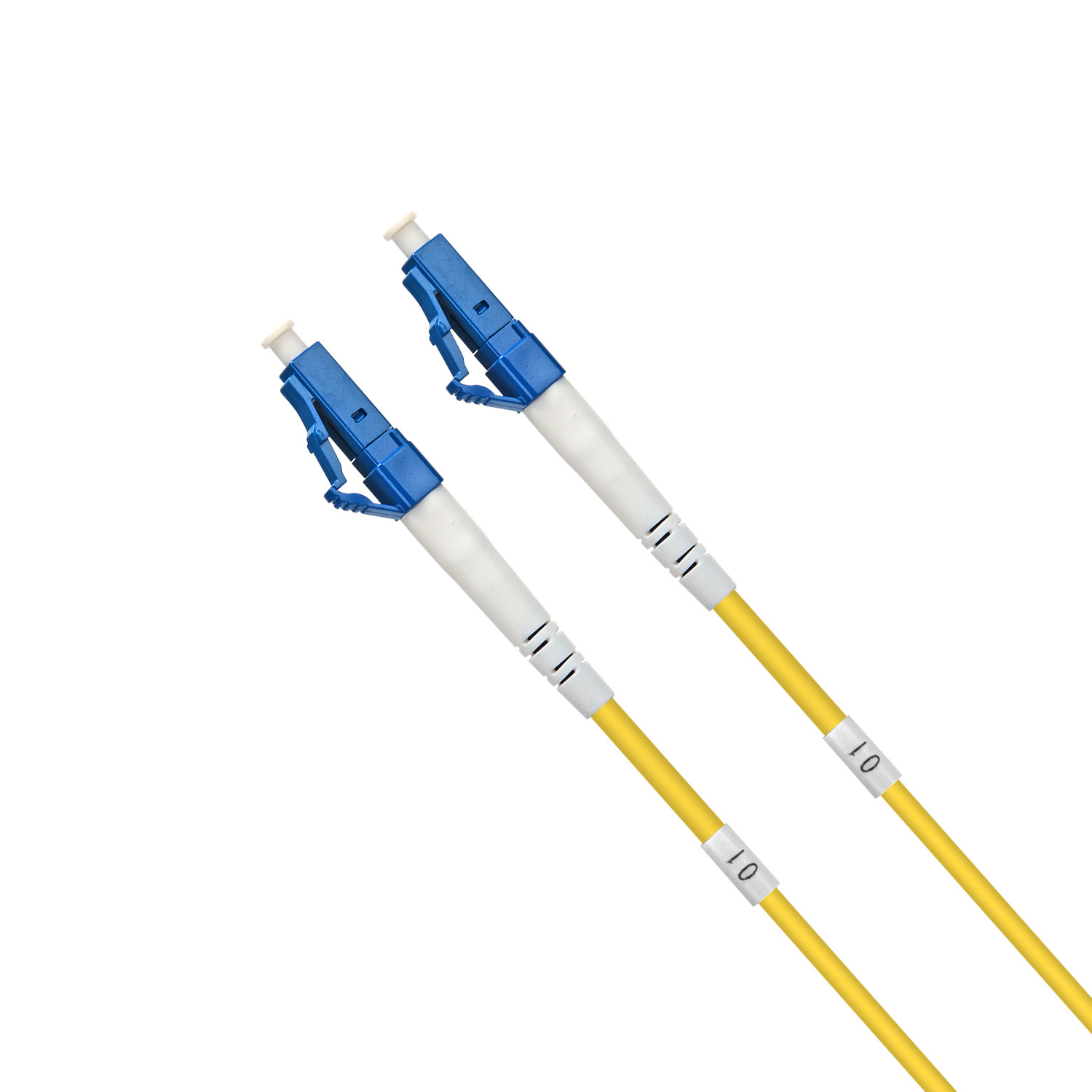

    Optical Jumper Single Mode SM Lc-Lc 24 Core 3 Meters Fiber Optic Patch Cord

    Optical patch Cord and pigtail is the basic parts for optical transmission. They are consist of fiber optic cable and terminated connector. Wolon has strong capacity and experience to support any large demand.
    Feature
    1).Low Insertion loss
    2).High return loss
    3).Good Repeatability
    4).Good Interchange
    5).Excellent Environmental Adaptability

    Application
    1).Communication rooms
    2).FTTH (Fiber to The Home)
    3).LAN (Local Area Network)
    4).FOS (fiber optic sensor)
    5).Fiber Optic Communication System
    6).Optical fiber connected and transmitted equipment
    7).Defense combat readiness
    Details Images
    Parameter
    Unit
    Value
    Connector Type
    FC/UPC,FC/APC,SC/UPC,SC/APC,LC/UPC,LC/APC,ST/PC,MPO
    Fiber Type
    Multi-Mode
    Single Mode
    Insertion Loss
    dB
    Typ.≤0.1 Max.≤0.2
    Typ.≤0.1 Max.≤0.3
    Return Loss (Typ.)
    dB
    ≥36 (no APC connector)
    /PC
    /UPC
    /APC
    ≥45
    ≥50
    ≥55
    Repeatability
    dB
    ≤0.1
    Interchangeability
    dB
    ≤0.2
    Connection Durability
    times
    ≥1000
    Operating/Storage Temperature
    °C
    -40~+80

    24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc

    24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc

    Product Tags:

    24 Core Fiber Optic Patch Cord



    Single Mode Fiber Jumper SM



    Lc Lc Fiber Optic Patch Cord


    Quality 24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc for sale

    24 Core Fiber Optic Patch Cord , Single Mode Fiber Jumper SM Lc-Lc
