    Simplex SM Lc Sc Fiber Patch Cord High Return Loss Customized Length

    Ask Lasest Price
    Brand Name : DAMU
    Model Number : DM-PC-LCSC
    Certification : CE ROSH ISO9001
    Payment Terms : T/T
    Supply Ability : 500000/month
    Delivery Time : 5-8
    • Product Details
    • Company Profile

    Simplex SM Lc Sc Fiber Patch Cord High Return Loss Customized Length

    Product Description

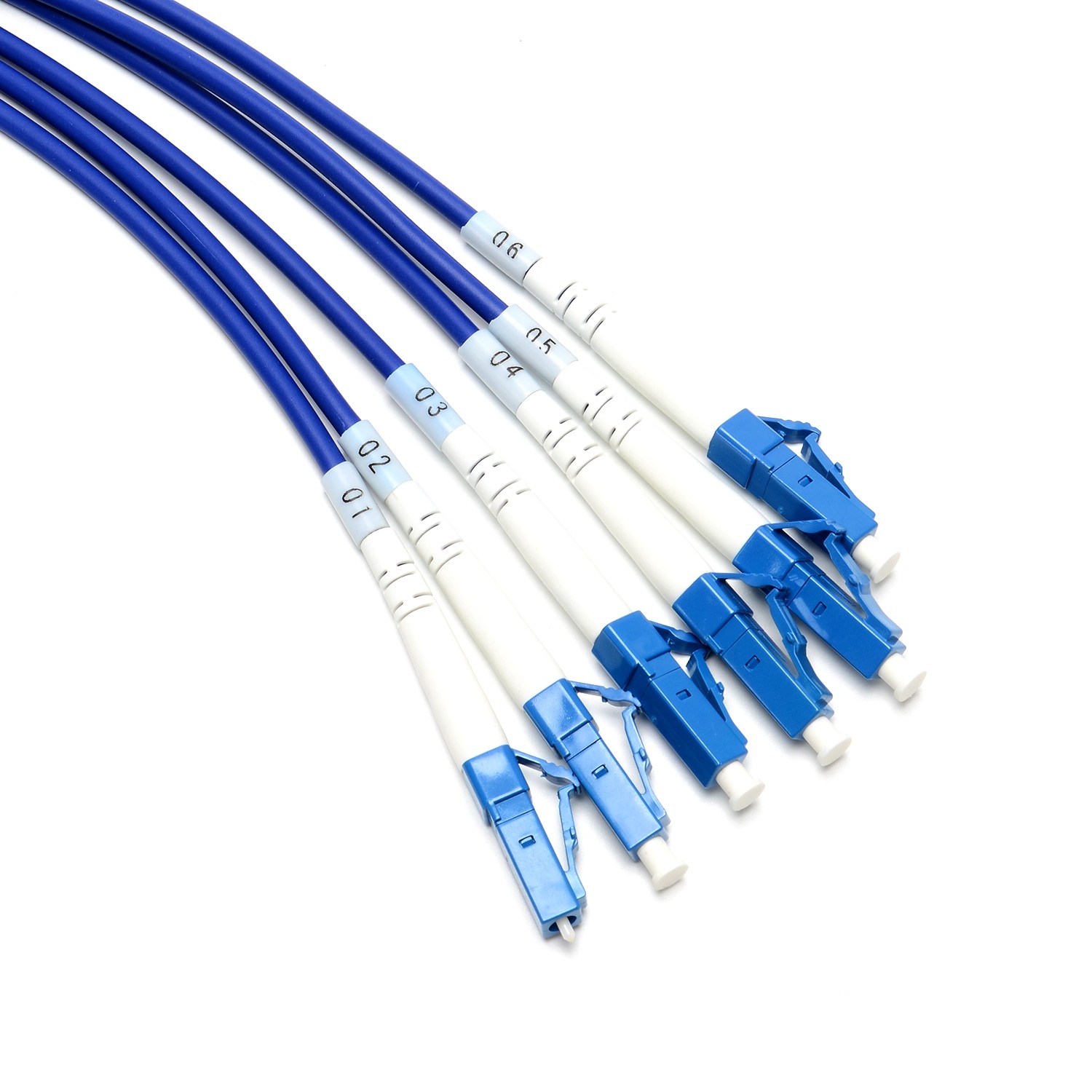

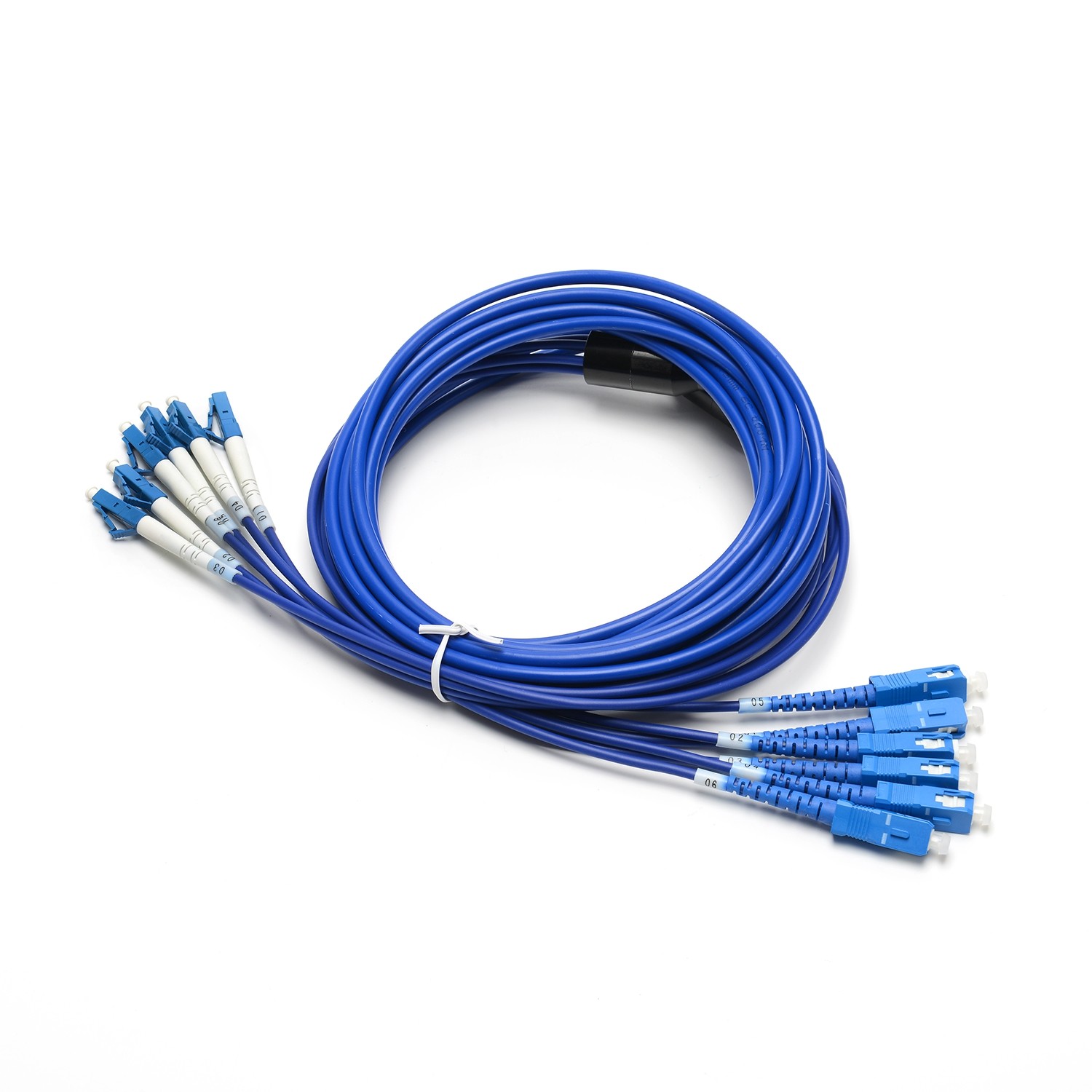

    Customized length Simplex LC-SC Fiber Optic Patch Cord High return loss


    Quick details:

    1. Precise connector
    2. Customized length
    3. Excellent mechanical capability
    4. Insertion loss<0.2dB,
    5. Good durability and exchangeability
    6. Compliant with Telcordia GR-326-CORE, TIA/EIA and IEC standard

    Features:

    Low insertion loss High return loss

    Excellent mechanical endurance

    High credibility and stability

    Good in repeatability and exchangeability


    Applications:

    Optical access network

    Data processing networks

    Premise installations

    Local Area Networks(LANs)

    Wide Area Networks(WANs)


    Specification:

    Connector TypeFC, SC, LC, ST, MU, MTRJ, MPO
    Fiber TypeSM(G.652D/G.657A)MM(OM1/OM2/OM3/OM4)
    Ferrule End-facePCUPCAPCPC
    Insertion Loss≤0.3dB≤0.2dB≤0.3dB≤0.2bB
    Return Loss≥45dB≥50dB≥60dB≥35dB
    Exchangeability≤0.2dB
    Repeatability≤ 0.1dB(1000 times)
    Durability> 1000 times
    Operating Temperature-40°C ~ +85°C

    Fiber typeMin. BandwidthDistanceattenuation
    62.5/125

    850/1300nm

    200/500 MHz/Km

    @100Mbps 2km @1Gig 220m

    850/1300nm

    3.0/1.0dB/km

    50/125

    850/1300nm

    500/500 MHz/Km

    @100Mbps 2km @1Gig 500m

    850/1300nm

    3.0/1.0dB/km

    50/125

    10Gig Optimized

    850/1300nm

    2000/500 MHz/Km

    @100Gig Varies by VCSEL typical 300m 2850nm

    850/1300nm

    3.0/1.0dB/km

    9/125

    1310/1550nm

    Approx 100 Terahertz

    Up to 100km Varies by transceiver

    1310/1550nm

    0.4/0.3dB/km


    Ordering Information


    Boot

    (cable size)

    Boot ColorFiber TypeCable numberFerruleLength

    0.9mm

    2.0mm

    3.0mm

    Black

    Beige

    Blue

    Gray

    White

    Yellow

    9/125um SM

    50/125um MM

    62.5/125um MM

    OM3

    OM4

    Simplex

    Duplex

    Multi-fiber

    UPC

    APC

    Customized
