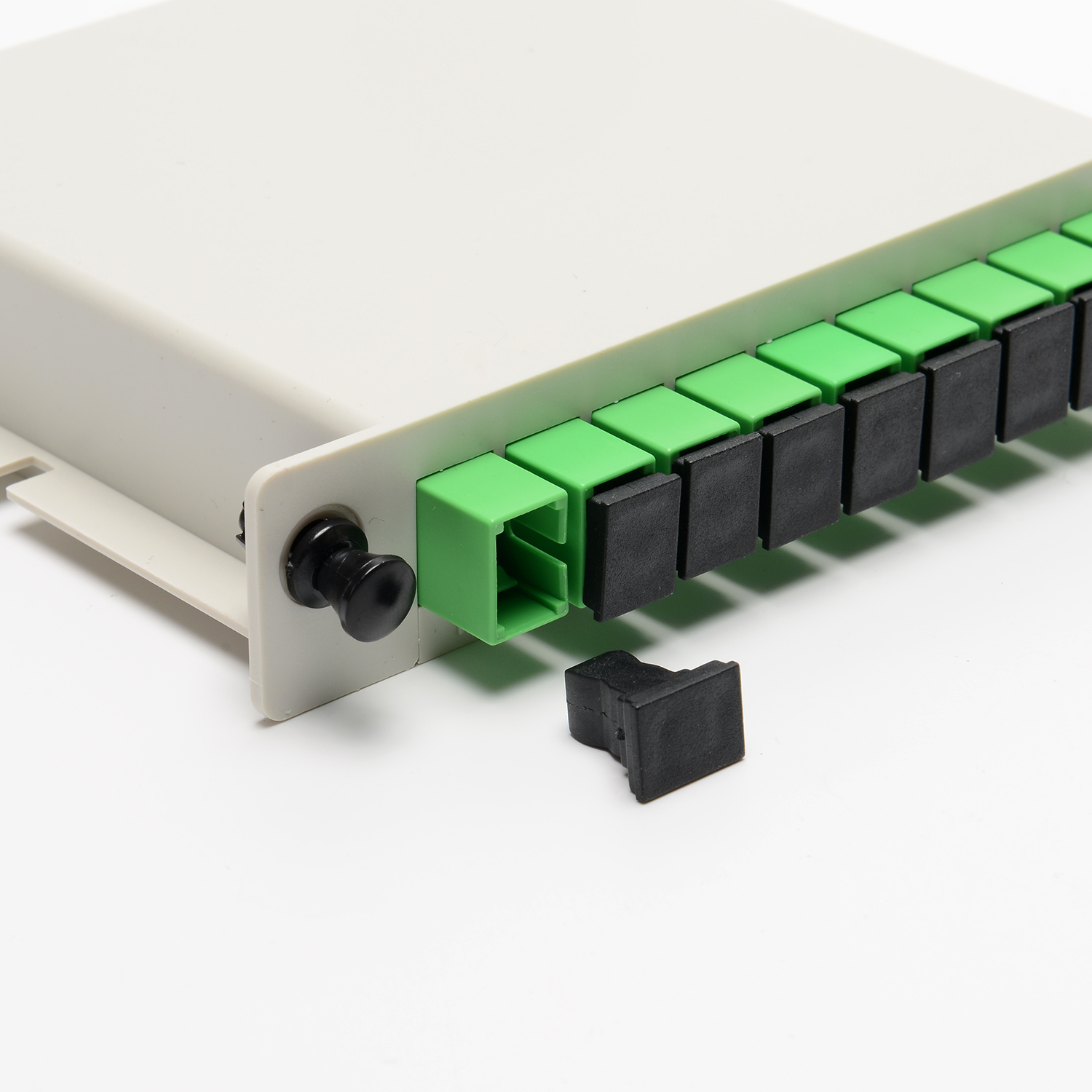

FTTH SC APC 1x4 LGX Box Type Fiber Optic Splitter Insert PLC Low Insertion Loss

Product Categories

Shenzhen damu technology co. LTD

Contact Now

Name: FTTH SC APC 1x4 LGX Box Type Fiber Optic Splitter Insert PLC Low Insertion Loss
Brand: DAMU
Price: 1 USD

Add to Cart

FTTH SCAPC 1*4 LGX box type fiber optic splitter insert PLC Low insertion loss

PLC stands for Planar Lightwave Circuit. PLC splitters are used to distribute or combine optical signals. It is based on planar

lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.

LGX Box PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements.

With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.

Installation is simple using a variety of connector types or fusion splicing.

Drawing for LGX Box(make 1x4 LGX Splitter box as reference)

PLC Splitter LGX Box Features

Low insertion loss

Low Polarization Dependent Loss

Compact design

Good channel-to-channel uniformity

Wide Operating Wavelength: 1260~1650nm

High Reliability and Stability

Telcordia GR-1209-CORE-2001 Compliant

Telcordia GR-1221-CORE-1999 Compliant

Application

Installed in Outdoor Cabinet and Floor Terminal Box

FTTH Fiber to the home

PON network

CATV

Fiber LAN

Advantages of PLC Splitters

The loss to different wavelength transmission is not sensitive, so it can meet the transmission requirements of different

wavelength High spectral uniformity, can splitter the signals on average Compact structure, small volume The cost advantage is

very obvious on many splitter channels

Type		1x2	1x4	1x8	1x16	1x32	1x64
Operating wavelength(nm)		1260-1650
Insertion loss (dB)	Typical	3.6	7.2	10.5	13.5	17	19.5
Insertion loss (dB)	Maximum	4	7.5	11	14	17.2	21
Uniformity (dB)	Typical	0.4	0.5	0.6	1	1	2
Uniformity (dB)	Maximum	0.6	0.6	0.8	1.2	1.5	2.5
Polarization Dependent Loss (dB)	Typical	0.1	0.1	0.15	0.2	0.2	0.2
Polarization Dependent Loss (dB)	Maximum	0.15	0.15	0.25	0.3	0.3	0.3
Wavelengthdependentloss (dB)	Typical	0.1	0.1	0.15	0.3	0.3	0.3
Wavelengthdependentloss (dB)	Maximum	0.2	0.3	0.3	0.5	0.5	0.5
Return loss (dB)	Minimum	55/50
Directivity(dB)	Minimum	55
Operating temperature(℃)		-20 to 85
Storage temperature(℃)		-40 to 85
Optical fiber type		SMF-28 Or customer required
Optical fiber length(m)		1.2 or customize
