SC / APC LGX Box PLC Splitter 1x8 Fiber Optical Splitter Card Divisor PLC 130x100x25mm

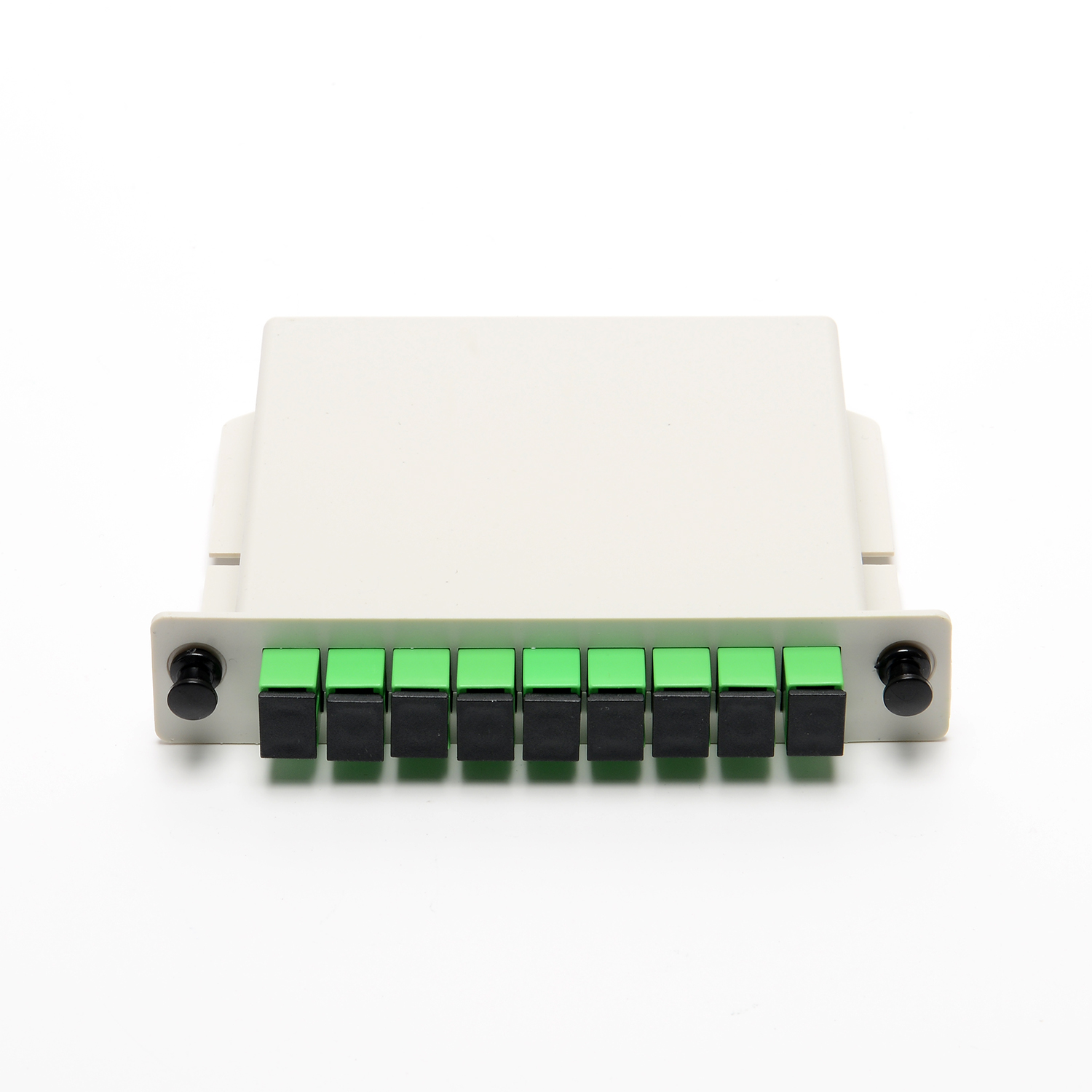

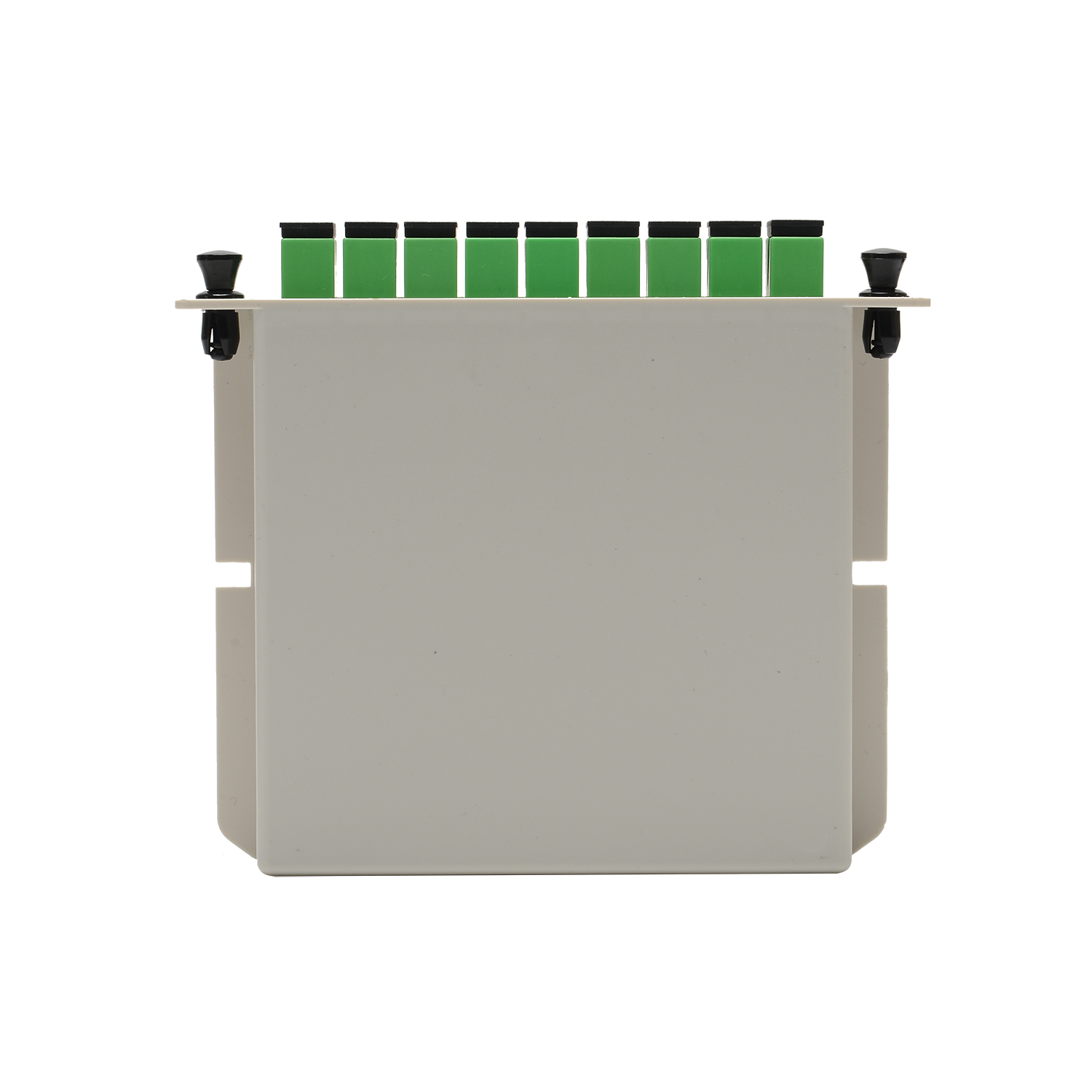

1x8 SC/APC LGX box type fiber optical splitter card Divisor PLC 130x100x25mm

Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.

Features
1).Low Insertion loss

2).Low PDL

3).Compact Design

4).Good channel-to-channel uniformity

5).Wide Operating Wavelength: 1260-1650nm

6).Wide Operating Temperature: -40°C - 85°C

7).High Reliability and Stability

Application

FTTH, LAN, PON & Optical CATV

Local ring net, Optical fiber communication system

Optical fiber test equipment, Optical fiber sensor

High speed and low loss Fiber Optical Plc Splitter

Parameter for PLC Splitter
Parameter		1x2	1x4	1x8	1x16	1x32	1x64
Attenuation Value(dB)		≤3.7	≤7.5	≤11	≤14.5	≤18	≤22
Loss Uniformity(dB)		≤0.8	≤0.8	≤1.0	≤1.4	≤1.9	≤2.5
Return Loss(dB)	APC	≥60
	UPC	≥60
PDL(dB)		≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3
Directivity(dB)		≥55	≥55	≥55	≥55	≥55	≥55
Operating Temperature(oC)		-40~85
Storage Temperature(oC)		-40~85
Operating Bandwidth(nm)		±40
Operating Wavelength(nm)		1260~1650
