mini GYTC8S Overhead Self Supporting Optical Cable Single mode
GYXTC8S 4 6 8 12 core

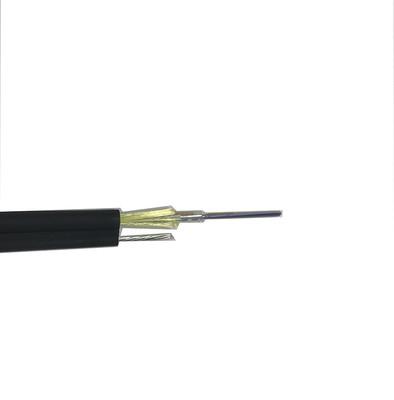

Self-supported figure 8 optical cable with fibers placed in jelly
filled loose buffer tube stranded around dielectric central member.
The cable core is protected with jelly or waterblocking material to
prevent water intrusion and migration. This set unit and galvanized
steel messenger are covered with polyethylene outer jacket.
Specification:
Item Name:Fiber optical cable GYXTC8S.
Optical Mode:Singlemode/Multimode.
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm.
Total Fiber Count:2-12cores.
Bend Radius(Static/Dynamic):10D/20D.
Working Life:More than 25 years.
Application:Aerial self-supporting,Local network,Local network,Long
distance network communication.
Construction
- Colored fiber
Coated outside diameter:125.0±0.1um Optical diber diameter:242±7um UV color fiber:standard chromatogram Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Violet,Rose/Pink,Aqua - Tube filling compound(Gel)
- PBT loose tube 4. Aramid yarn 5. Black PE out jacket outside
diameter:9.5*18.3mm
|
Standards and Certificate:
Fiber optical cable complies with Standard YD/T 769-2003,IEC60794-1
Certificate:CE ROHS ISO9001
Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of
fiber
4. Crush resistance and flexibility
| Fiber count | 6 core |
| Fiber Type: | G652D/G657A1/G657A2 |
| Crush Resistance Long term: | 300 (N/100MM) |
| Crush Resistance Short term: | 1000(N/100MM) |
| Overall Diameter | 9.5*18.3mm |
| Sheath | PE |
| Strand Steel wire | 7*0.8mm |
| Sample Status | In stock |
