HDPE Armoured Fiber Optic Cables Single Mode GYTS/GYTA PE Outer Jacket

Ask Lasest Price
Brand Name :	DAMU
Model Number :	DM-GYTS-48
Certification :	ISO9001,CE,FCC,ROHS
Payment Terms :	T/T
Supply Ability :	5000km/month
Delivery Time :	10-15Days

Add to Cart

Product Details
Company Profile

HDPE Armoured Fiber Optic Cables Single Mode GYTS/GYTA PE Outer Jacket

Product Details

Product Name	GYTS Fiber Optic Cable	Fiber Count	48core
Construction	Stranded Loose Tube	Fiber Type	Singlemode G.652D
Outer Jacket Material	Black PE	Samples	In Stock
Application	Aerial And Duct	Jacket Diameter	10.5

Product Description

Steel Wire Strength Member HDPE Armoured Fiber Optic Cable GYTS/GYTA

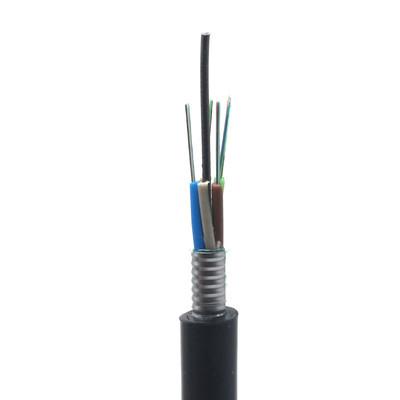

Stranded Loose Tube Light-armored Cable(GYTS)The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular
cable core.

Cable Specification
Item Name:Fiber optical cable GYTS
Optical Mode:Singlemode/Multimode
Fiber Diameters:G652, G655, 50/125μm, 62.5/125μm
Total Fiber Count:2-144
Bend Radius(Static/Dynamic):10D/20D
Working Life:More than 30 years
Application:Aerial self-supporting,Local network,Local network,Long distance network communication.

Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility

Product Name	GYTS fiber optic cable
Fiber Count	48 Fibers
Construction	Stranded Loose Tube
Fiber Type	Singlemode G.652D
Outer Jacket Material	PE(Black)
Weight	100kg/km
Armor Layer	Aluminum Tape
Application	Aerial and Duct
Jacket Diameter	9.8mm-16.1mm
Jacket Material	PE
Cable Length	1KM-5KM per drum
Test Wavelength	1310/1550nm
Operation Temperature	-20℃ to +60℃

Product Details

HDPE Armoured Fiber Optic Cables Single Mode GYTS/GYTA PE Outer Jacket
