GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket

Product Categories

Shenzhen damu technology co. LTD

Contact Now

GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket

Ask Lasest Price
Brand Name :	DAMU
Model Number :	DM-GYTA53-24
Certification :	ISO9001
Payment Terms :	T/T
Supply Ability :	5000km/month
Delivery Time :	5-8

Add to Cart

Product Details
Company Profile

GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket

Product Details

Name	GYTA53 Fiber Cable	Fibers	48core
Fiber Type	G652D	Samples	Free

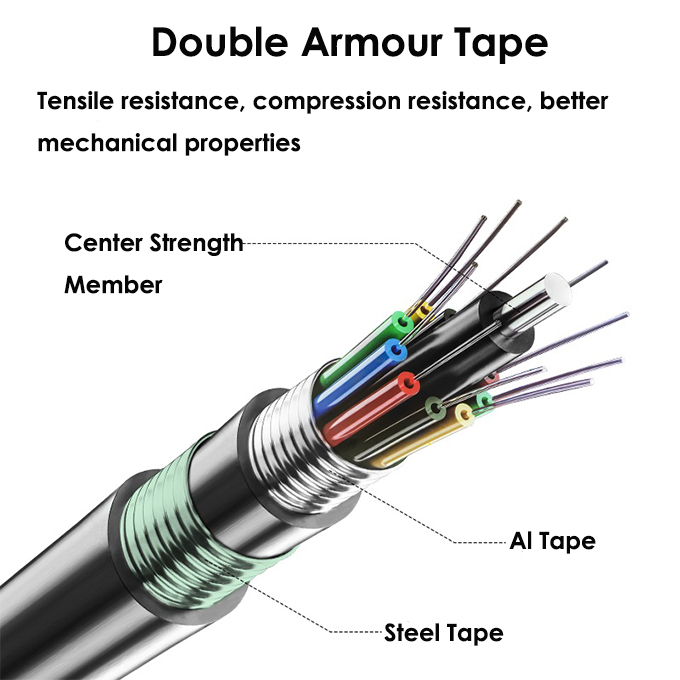

Armour	Steel Tape+Al Tape	Jacket	Double PE Jacket
Cable Color	Black	Warranty	3 Year
High Light	GYTY53 Outdoor Fiber Optic Cable , GYTA53 Outdoor Fiber Optic Cable , GYTA53 singlemode fiber cable

Product Description

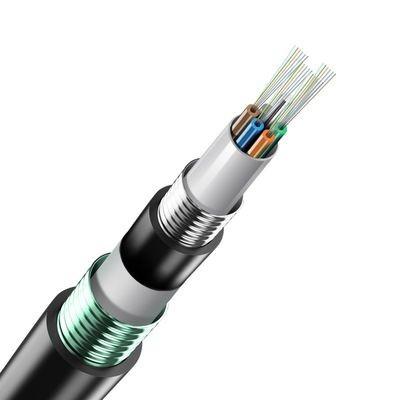

GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket

Outdoor Underground Direct Buried Duct GYTA53 GYTY53 Singlemode Fiber Optic Cable 24 48 96core

Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

Features
1. Loose tube gel-filled construction for superiorfiber protection.
2. Double jacket single armored(GYTY53) and Double jacket double
armored
3. (GYTA53) for rodent pr.otection and direct burial.
4. UV and moisture-resistant design

5. Waterproof

6. Rat bite

Applications
Direct buried, Duct, Underground conduits.
Backbone.

No.	Items			Unit	Specification
					G.652D
1	Cladding Diameter			μm	125±0.7
2	Core-cladding concentricity			μm	≤0.5
3	Cladding non-circularity			%	≤0.7
4	Coating Diameter			μm	245±5
5	Cladding -coating concentricity			μm	<12.0
6	Mode field Diameter	1310nm		μm	9.2±0.4
		1550nm		μm	10.4±0.5
7	Fiber Cutoff Wavelength			nm	λcc≤1260
8	Attenuation (max.)		1310nm	dB/km	≤0.4
			1550nm		≤0.3

Product Details

GYTA53 GYTY53 Outdoor Fiber Optic Cable Singlemode Double PE Jacket

FAQ

1.who are we?
We are based in Guangdong, China, start from 2018,sell to Eastern
Europe(18.00%),Western Europe(13.00%),Northern
Europe(11.00%),South Asia(10.00%),North America(9.00%),Mid
East(8.00%),Central America(7.00%),South America(7.00%),Eastern
Asia(6.60%),Africa(5.00%),Domestic Market(2.20%),Southern
Europe(1.20%),Oceania(1.00%),Southeast Asia(1.00%). There are total
about 11-50 people in our office.

2.how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
fiber optic polishing machine,fast connector,fiber optic polishing
jig,fiber optic patch cord

4.why should you buy from us not from other suppliers?
12 years of experience advanced level in optical fiber equipment,
we have OEM and ODM capabilities. We have always been in the
leading position in the same industry with superb workmanship,
excellent quality, good pre-sales and after-sales services.

5.what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese
