FTTH Fiber Optic Accessories , Simplex Duplex DIN Fiber Connector

Ask Lasest Price
Brand Name :	DAMU
Model Number :	DM-FOCDIN
Certification :	CE RoHS FCC
Payment Terms :	T/T
Supply Ability :	500000/month
Delivery Time :	3-7

Add to Cart

Product Details
Company Profile

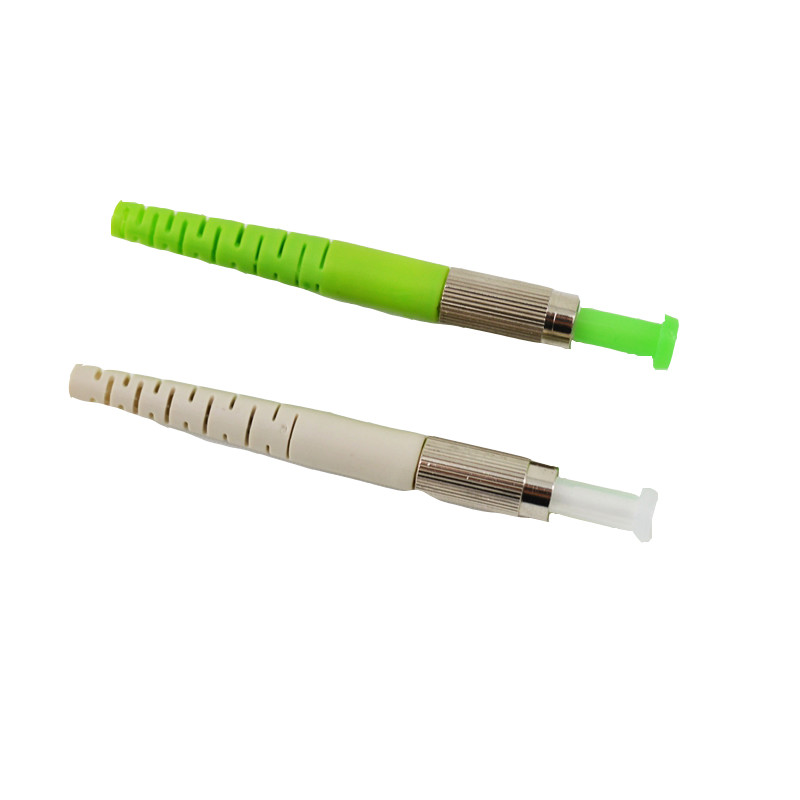

FTTH Fiber Optic Accessories , Simplex Duplex DIN Fiber Connector

DIN Fiber Optic Cable Connector Optical Fiber Connector Telecomunication Class For 3.0mm Cable

Product Details

Connector Type	DIN	Ferrule End-face	PC, UPC,APC
Fiber Type	Singlemode, Multimode	Cable Type	Simplex, Duplex
Cable OD	0.9/2.0/3.0mm	Housing Color	Blue, Green, Beige
Insertion Loss	<0.3dB	Return Loss	>50dB
High Light	single mode fiber connectors , multimode fiber connectors

Features:

Good durability

Good temperature performance

Easy installation

Competitive price

Precision mechanical dimension

Boots in a variety of colors

Application:

Fiber Optic Telecommunications

FTTH (Fiber To The Home)

CATV & CCTV

Data Processing Networks

Telecom Equipment

Local Area Networks

Specification:

Item	Single Mode	Multi Mode
Insertion Loss	≦0.2dB	≦0.3bB
Insert-Pull Test	1000 times
Operating Temperature	-40°C ~ +85°C
Ceramic Ferrule Specification	125.5um concentricity deviations:≦1um	127um concentricity deviations:≦3um
Suitable Fiber	9/125um	50/125um,62.5/125um

Order Information:

Item	Connector Description	Item	Connector Description
	PC/UPC/APC		PC/UPC/APC
Connector Singlemode 9/125	ST	Connector Multimode (50/125 or 62.5/125)	ST
	SC		SC
	FC		FC
	LC		LC
	MU		MU
	MTRJ(female)		MTRJ(female)
	MTRJ(male)		MTRJ(male)
	DIN

FTTH Fiber Optic Accessories , Simplex Duplex DIN Fiber Connector
