Waterproof Fiber Optic Cables Central Loose Tube PE Outer Jacket

Ask Lasest Price
Brand Name :	DAMU
Model Number :	DM-GYFXTY-8
Certification :	CE ROSH ISO9001
Payment Terms :	T/T
Supply Ability :	5000km/month
Delivery Time :	10-15DAYS

Add to Cart

Product Details
Company Profile

Waterproof Fiber Optic Cables Central Loose Tube PE Outer Jacket

Product Details

Product Name	GYFXTY Cable	Fiber Type	G652d
Number Of Fiber	8	Cable Diameter	7.2±0.5mm
Outer Jacket Materail	PE	Package	3000M/Wood Roll
Application	Overhead	Construction	Central Loose Tube
High Light	GYFXTY Fiber Optic Cables , G652d Overhead Fiber Optic Cables , G652d Overhead Optical Cables

Product Description

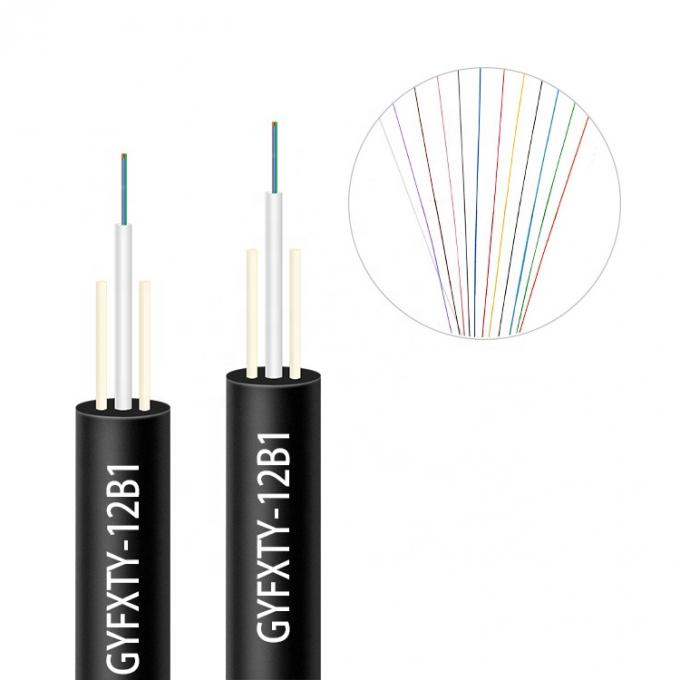

GYFXTY All-Dielectric Outdoor Waterproof Fiber Optic Cables Central Loose Tube FRP Strength Member

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound. Two Fiber Reinforced Plastic (FRP)

locates in the side of core as a non-metallic strength member. The tubes (and fillers) are

stranded around the strength member into a compact and circular core. After the cable core

is filled with the filling compound to protect it from water ingress, the cable is completed

with a PE sheath.

Features

Low dispersion and attenuation
PE sheath protects cable from ultraviolet radiation
Small diameter, light weight, and friendly installation
Excellent mechanical and temperature resistant performance
Special tube filling compound ensures a critical protection for fiber
High strength loose tube itself has good hydrolysis resistant performance
Two parallel non-metal strength has an excellent anti-electromagnet ability
Aerial application
Trunk power transmission system
Access network and local network
Electromagnetic interfering places
Adopted to outdoor distribution, lightning protection
Long-distance comunication and bureau communication

Optical Characteristics

Technical parameters:
cable count	out sheath diameter	Weight	Minimum allowable Tensile strength(N)		Minimum allowable Crush load(N/100mm)		Min bending radius(MM)		Suitable temperature
	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(℃)
2	7.2	45.00	1200	500	1000	300	20D	10D	-40+60
4	7.2	45.00	1200	500	1000	300	20D	10D	-40+60
6	7.2	45.00	1200	500	1000	300	20D	10D	-40+60
8	7.2	45.00	1200	500	1000	300	20D	10D	-40+60
12	7.2	45.00	1200	500	1000	300	20D	10D	-40+60
24	7.2	45.00	1200	500	1000	300	20D	10D	-40+60

Fiber standard control
Fiber Type	Multi-mode	G.651	A1a:50/125	Gradient-type refractive index

			A1b:62.5/125

	Single-mode	G.652(A,B,C,D)		B1.1routines
		G.653		B2 Zero dispersion-shifted
		G.654		B1.2 Cutoff wavelength shift
		G.655		B4 Non-zero dispersion-shifted

GYFXTY All Dielectric Outdoor Waterproof Fiber Optic Cables Central Loose Tube FRP Strength Member 0

GYFXTY All Dielectric Outdoor Waterproof Fiber Optic Cables Central Loose Tube FRP Strength Member 1

GYFXTY All Dielectric Outdoor Waterproof Fiber Optic Cables Central Loose Tube FRP Strength Member 2

GYFXTY All Dielectric Outdoor Waterproof Fiber Optic Cables Central Loose Tube FRP Strength Member 3

GYFXTY All Dielectric Outdoor Waterproof Fiber Optic Cables Central Loose Tube FRP Strength Member 4

Waterproof Fiber Optic Cables Central Loose Tube PE Outer Jacket
