Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode

Ask Lasest Price
Brand Name :	DAMU
Model Number :	DM-GYFXTY-6
Certification :	CE ROSH ISO9001
Payment Terms :	T/T
Supply Ability :	5000km/month
Delivery Time :	10-15DAYS

Add to Cart

Product Details
Company Profile

Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode

Product Details

Product Name	GYFXTY Fiber Opticl Cable	Fiber Type	Single Mode
Cable Structure	Uni-Loose Tube Non Metallic	Number Of Fiber	6
Cable Diameter	7.0±0.5mm	Outer Jacket Materail	PE
Package	3000M/Wood Roll	Application	Overhead
High Light	GYFXTY Optical Fiber Cable , GYFXTY Outdoor Optical Cable , GYFXTY telecommunication cable

Product Description

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables

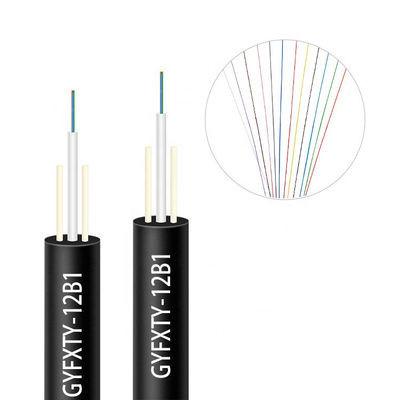

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound. Two Fiber Reinforced Plastic (FRP)

locates in the side of core as a non-metallic strength member. The tubes (and fillers) are

stranded around the strength member into a compact and circular core. After the cable core

is filled with the filling compound to protect it from water ingress, the cable is completed

with a PE sheath.

Features

Full cross-section water-blocking structure with vertical cover ensure good water blocking and moisture resistance
Loose tube is filled with special ointment for a key fiber protection
The material of strengt member is copper wire.
Product life of 30 years

Applications

Applications: Suitable for long-distance communication and indoor communication
Way of laying: overhead, pipeline
Operating temperature: -40 ~ + 70 °C
Bend radius: static 10x cable diameter; Dynamic 20x cable diameter

Optical Characteristics

Technical parameters:
cable count	out sheath diameter	Weight	Minimum allowable Tensile strength(N)		Minimum allowable Crush load(N/100mm)		Min bending radius(MM)		Suitable temperature
	(MM)	(KG)	short term	long term	short term	long term	short term	long term	(℃)
2	7.2	45.00	1200	500	1000	300	20D	10D	-40+60
4	7.2	45.00	1200	500	1000	300	20D	10D	-40+60
6	7.2	45.00	1200	500	1000	300	20D	10D	-40+60
8	7.2	45.00	1200	500	1000	300	20D	10D	-40+60
12	7.2	45.00	1200	500	1000	300	20D	10D	-40+60
24	7.2	45.00	1200	500	1000	300	20D	10D	-40+60

Fiber standard control
Fiber Type	Multi-mode	G.651	A1a:50/125	Gradient-type refractive index

			A1b:62.5/125

	Single-mode	G.652(A,B,C,D)		B1.1routines
		G.653		B2 Zero dispersion-shifted
		G.654		B1.2 Cutoff wavelength shift
		G.655		B4 Non-zero dispersion-shifted

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 0

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 1

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 2

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 3

2core 4core 6core Outdoor Single Mode GYFXTY Optical Fiber Cable Telecommunication Grade Cables 4 Telecommunication Outdoor Optical Fiber Cable 2 Core 4 Core 6 Core Single Mode
