    SCAPC PLC 1X32 Single Mode Splitter , Passive Fiber Optical Box 32 Way FTTH

    Ask Lasest Price
    Brand Name : DAMU
    Model Number : LGX SCAPC 1X32
    Certification : ROSH CE
    Supply Ability : 20000pcs/day
    • Product Details
    • Company Profile

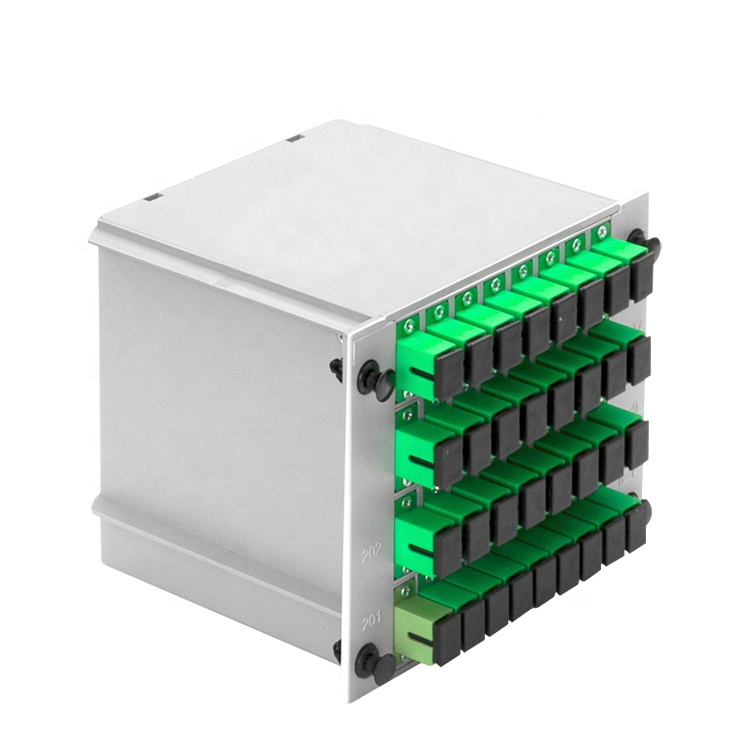

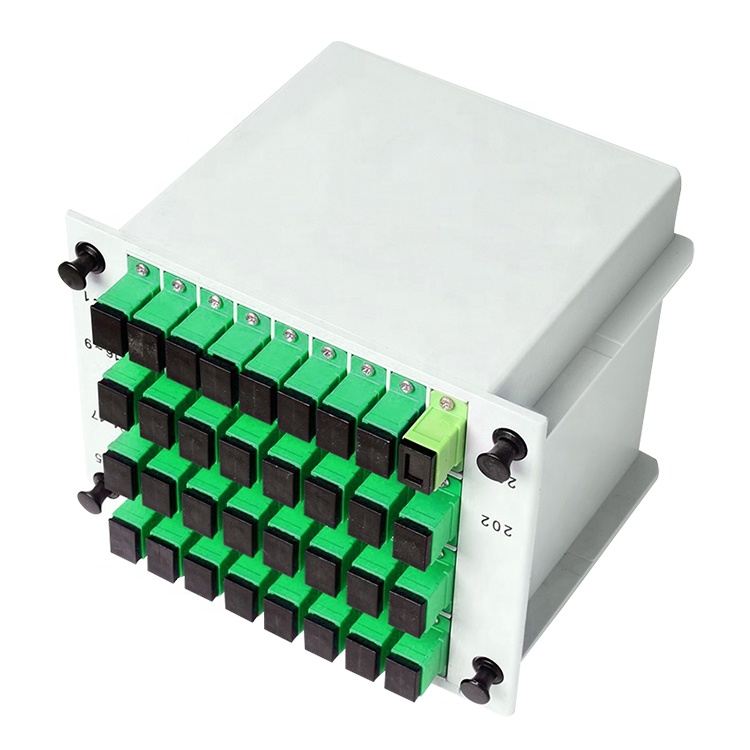

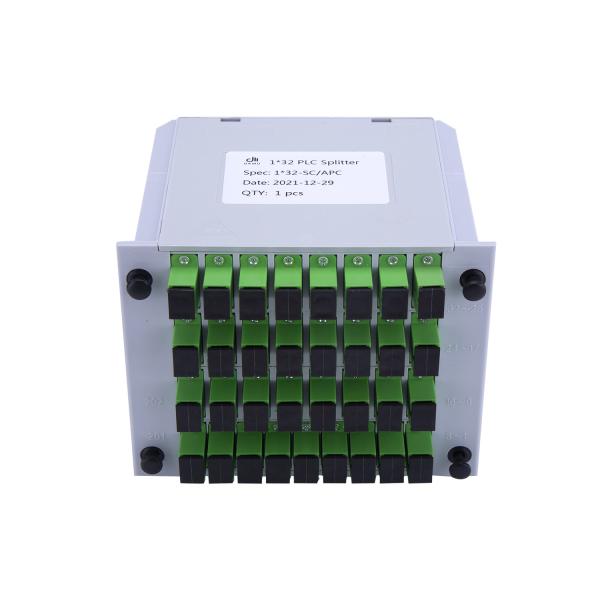

    SCAPC PLC 1X32 Single Mode Splitter , Passive Fiber Optical Box 32 Way FTTH

    SCAPC PLC 1X32 Single Mode Splitter Device Cassette Passive Fiber Optical Box 32Way FTTH


    Product Description

    SA connector steel tube gpon 1x16 1*16 mini plc splitter

    PLC optical splitter is an integrated waveguide optical power distribution device based on quartz substrate. It has the
    characteristics of small size, wide operating wavelength range, high reliability and good uniformity. It is especially suitable
    for passive optical networks (EPON, BPON, GPON, etc.) connects the central office and the terminal device and implements the splitting of the optical signal.

    Features:
    1.Low Insertion loss and Low PDL
    2.Uniform power splitting
    3.High reliability
    4.Excellent environmental stability
    5.Compact size and various package

    Application:

    1.FTTx Systems
    2.Digital, hybrid and AM-Video systems
    3.LAN,WAN and Metro Networks
    4.CATV systems
    5.Other applictaions in fiber optic systems
    Types
    1x2
    1x4
    1x8
    1x16
    1x32
    Test wavelength
    1310nm
    Working wavelength
    1260nm~1650nm
    Interface model
    SC/UPC
    Insertion loss (dB) (P/S level)
    3.8/4.0
    7.1/7.3
    10.2/10.5
    13.5/13.7
    16.5/16.9
    Loss uniformity (dB)
    0.4
    0.6
    0.8
    1.2
    1.5
    Return loss (dB) (P/S level)
    55/50
    55/50
    55/50
    55/50
    55/50
    Polarization dependent loss (dB)
    0.2
    0.2
    0.2
    0.25
    0.25
    Directionality (dB)
    55
    55
    55
    55
    55
    Wavelength dependent loss (dB)
    0.3
    0.3
    0.3
    0.3
    0.3
    Temperature stability (dB)
    0.4
    0.4
    0.4
    0.4
    0.4
