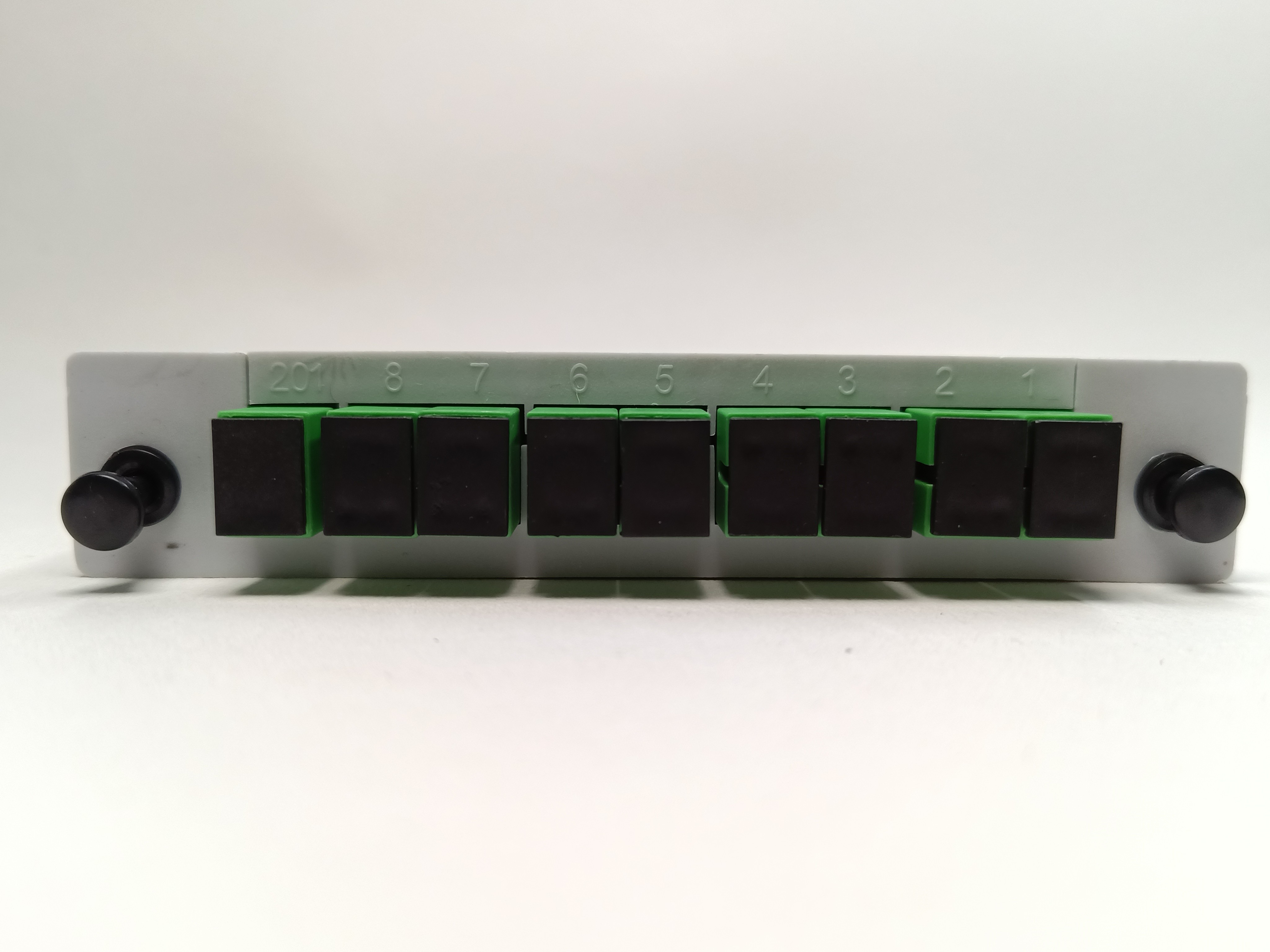

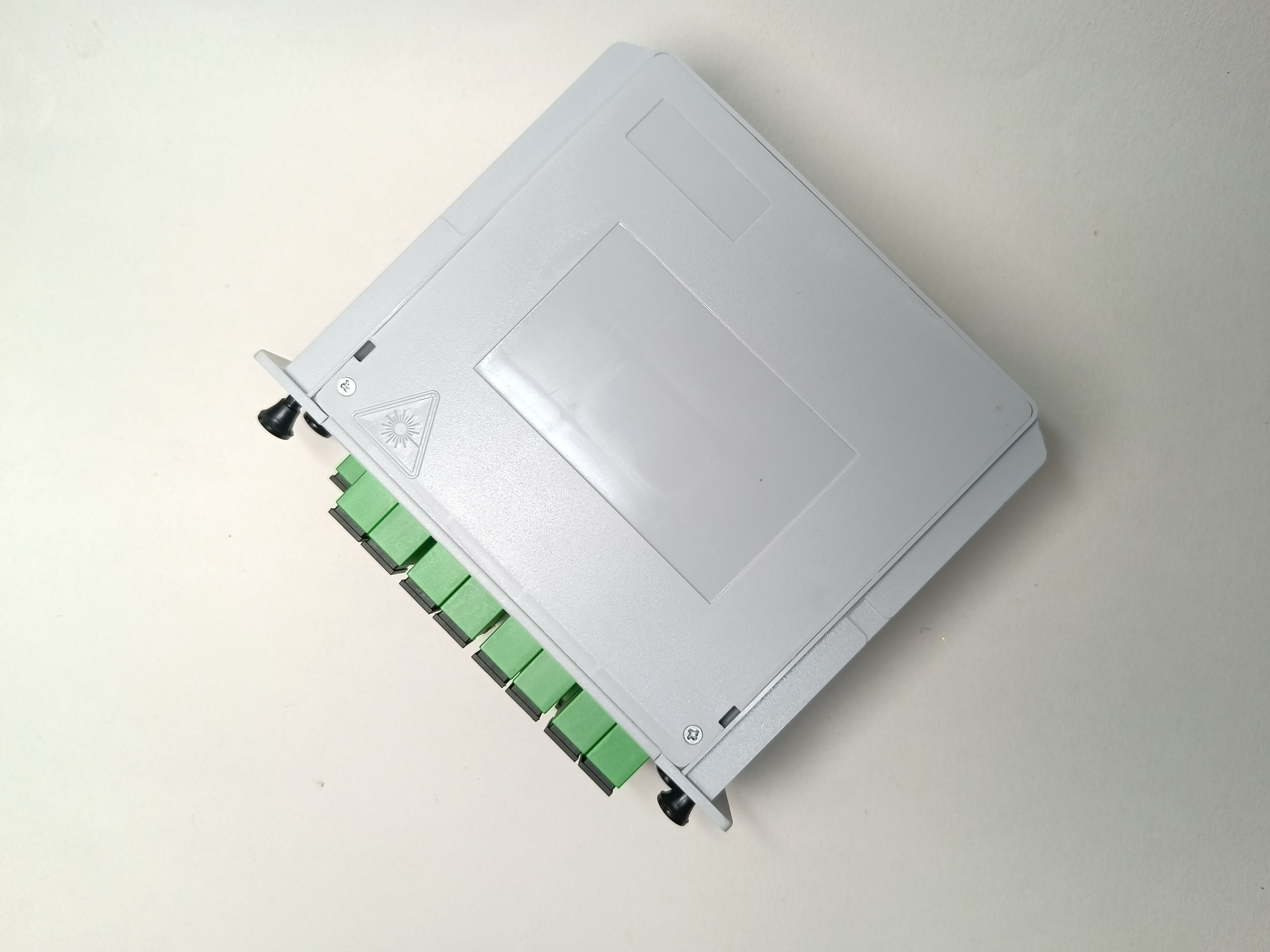

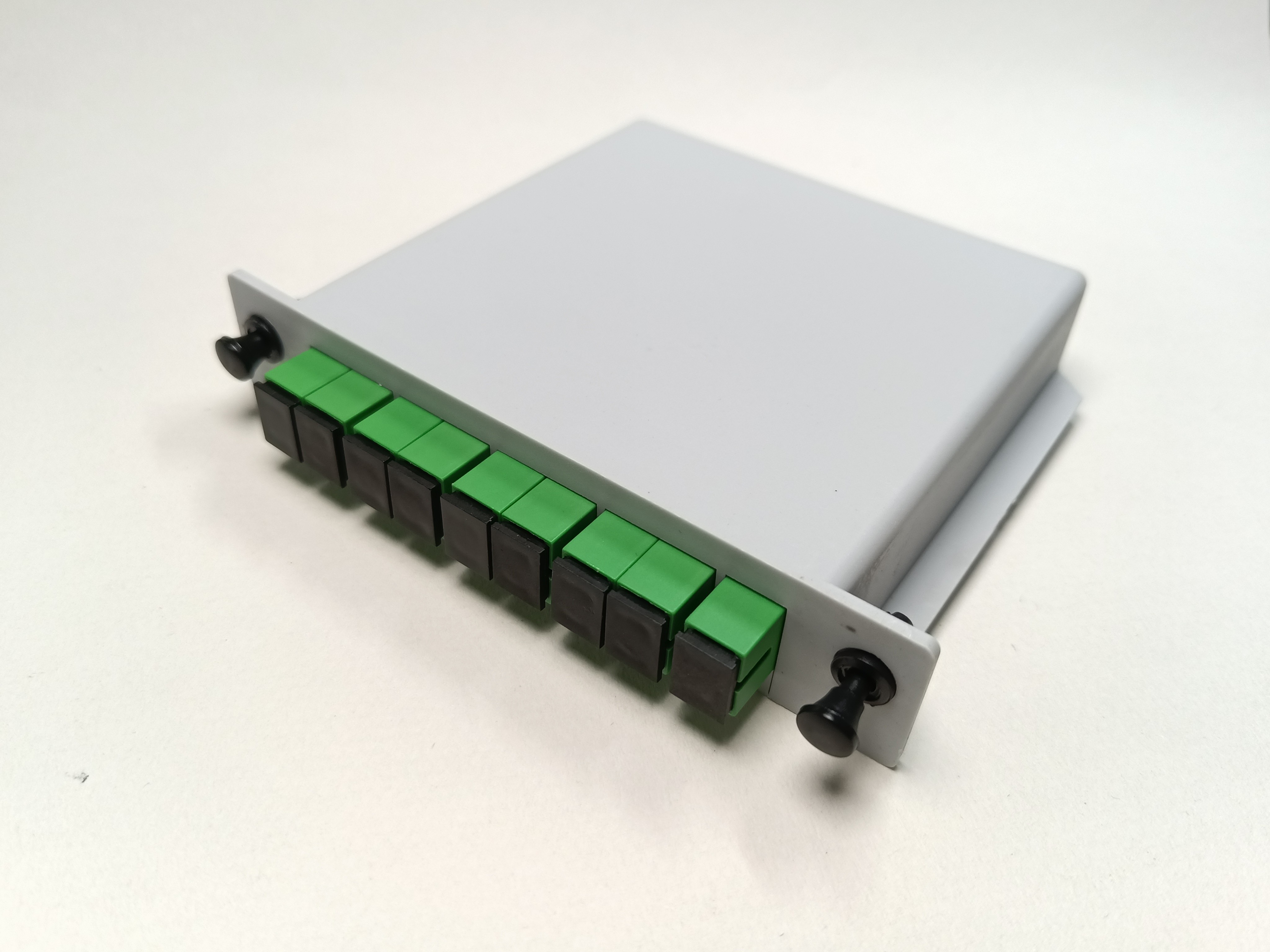

    Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter

    Ask Lasest Price
    Brand Name : DAMU
    Model Number : LGX SCAPC 1X8
    Supply Ability : 20000pcs/day
    • Product Details
    • Company Profile

    Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter

    SCAPC optic fiber splitter 1X8 Cassette Card Insertion optical PLC Splitter 1:8 Port


    Product Description

    SA connector steel tube gpon 1x16 1*16 mini plc splitter

    Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

    Specification
    item
    value
    Model Number
    1x8 SCAPC
    Type
    FTTx Solutions
    Place of Origin
    China
    SHENZHEN
    Brand Name
    DAMU
    Port
    1x8
    Input Pigtall Style
    0.9MM
    Input Connector
    SC,LC,FC,ST
    Output Pigtll Style
    0.9MM
    Fiber Length
    0.5m,1m,1.5m,2m,3m,4m
    Output Connctor
    SC,LC,FC,ST
    Application
    FTTX Systems
    No. of Fiber
    8
    Use
    FTTH

    MAIN SPECIFICATION
    Parameter
    1x2
    1x4
    1x8
    1x16
    1x32
    Operating Wavelength (nm)
    1260~1650
    Fiber Type
    G657A, G652D or Customer Specified
    Insertion Loss (dB)(S/P Grade)
    4.2/4.0
    7.5/7.2
    10.7/10.4
    13.9/13.7
    17.1/16.7
    Return Loss (dB)(S/P Grade)
    50/55
    50/55
    50/55
    50/55
    50/55
    Wavelength Dependent Loss (dB)
    0.3
    0.3
    0.3
    0.5
    0.5
    Operating Temperature (°C)
    -40~85
    Storage Temperature (°C)
    -40~85
    Packaging Dimension (mm)
    40*4*4
    40*4*4
    40*4*4
    40*4*4
    50*7*4
    Note: The above parameter is for PLC splitter with connectors. If w/o connector, insertion loss will reduce by 0.2dB.

    Cassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber SplitterCassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber SplitterCassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber SplitterCassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber SplitterCassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber SplitterCassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber SplitterCassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber SplitterCassette Card Insertion Optical PLC Splitter , 1X8 Port SCAPC Optic Fiber Splitter
