    SC UPC APC CONNECTOR ABS Box Type Fiber PLC Splitter PASSIVE 16 Way

    Ask Lasest Price
    Brand Name : DAMU
    Model Number : SC 1X16 ABS BOX PLC
    Supply Ability : 20000pcs/day
    • Product Details
    • Company Profile

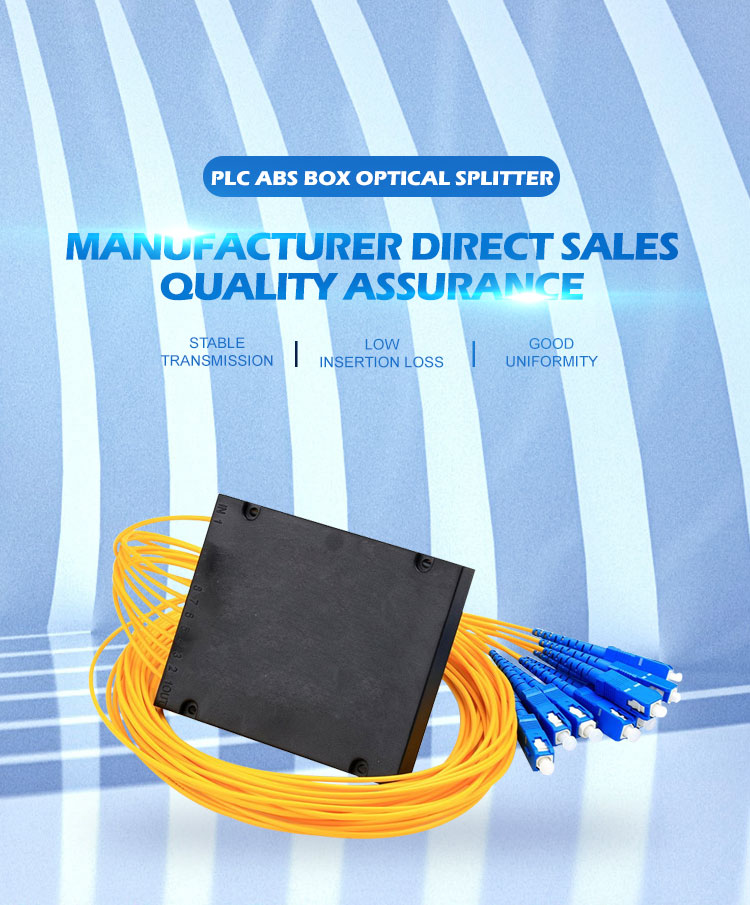

    SC UPC APC CONNECTOR ABS Box Type Fiber PLC Splitter PASSIVE 16 Way

    SC UPC APC plc splitter ABS type Box PLC PASSIVE splitter/16 way 1*16 plc splitter


    Product Description

    SA connector steel tube gpon 1x16 1*16 mini plc splitter

    Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. PioneerGoods provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

    Specification
    item
    value
    Model Number
    1x16 ABS plc splitter
    Type
    FTTx Solutions
    Place of Origin
    China
    Guangdong
    Brand Name
    DAMU
    Port
    1x16
    Input Pigtall Style
    2.0mm 3.0mm
    Input Connector
    SC,LC,FC,ST
    Output Pigtll Style
    2.0mm 3.0mm
    Fiber Length
    0.5m,1m,1.5m,2m,3m,4m
    Output Connctor
    SC,LC,FC,ST
    Application
    FTTX Systems
    No. of Fiber
    16.
    Use
    FTTH


    MAIN SPECIFICATION
    Parameter
    1x2
    1x4
    1x8
    1x16
    1x32
    Operating Wavelength (nm)
    1260~1650
    Fiber Type
    G657A, G652D or Customer Specified
    Insertion Loss (dB)(S/P Grade)
    4.2/4.0
    7.5/7.2
    10.7/10.4
    13.9/13.7
    17.1/16.7
    Return Loss (dB)(S/P Grade)
    50/55
    50/55
    50/55
    50/55
    50/55
    Wavelength Dependent Loss (dB)
    0.3
    0.3
    0.3
    0.5
    0.5
    Operating Temperature (°C)
    -40~85
    Storage Temperature (°C)
    -40~85
    Packaging Dimension (mm)
    40*4*4
    40*4*4
    40*4*4
    40*4*4
    50*7*4
    Note: The above parameter is for PLC splitter with connectors. If w/o connector, insertion loss will reduce by 0.2dB.
