FTTH Drop Cable Cutting Machine
1.Purpose:
DM-FDC high-speed heavy-duty FTTH drop cable cutting machine is
suitable
for looping, meter counting and binding of the ftth drop cable,
butterfly cable,
12 core cable, etc. The equipment has the advantages of high
production
efficiency, good cable arrangement quality, no pressing, orderly
arrangement
and convenient cable removal, which completely solves the problems
of low
production efficiency and poor cable arrangement quality of the
previous
optical cable industry.
2. Characteristics:
1. It is quick and convenient to load and unload the reel. The
cantilever type
combined guide wheel is used for cable storage, and the linkage
brake
mechanism is used for paying off without disorderly line.
2. Smooth rod type guide wheel and tension type automatic cable
arrangement are adopted for cable arrangement. The cable
arrangement is
neat and beautiful. Mature operators can arrange one reel cable in
30-40
seconds.
3. After the optical cable is in a circle, the self expanding cable
take-up shaft
can be used, the inner diameter can be freely tightened, can be
quickly tied
and easily removed, with high efficiency and short time.
4.Right side put in cable and left side put out the cable.
5. Spindle motor speed 1650.
3, Technical performance
1. Outer diameter of reel φ 380mm (adjustable)
2. Inner core of reel φ 120mm (inner diameter of reel can be
selected by
customers)
3. Reel width: 40-120mm (adjustable)
4. Cable cutting type: ftth drop cable, butterfly cable,
self-supporting drop
cable, 12 core cable
5. Winding shaft speed 0-600r / min
6. Motor power: 2.2kw
7. Speed control 2.2kW frequency converter
8. High precision length counter(meter length adjustable) can
correct meter
error by itself.
9. cutting length:Lam≤990M
10. cable size:ø 5.0- ø 10.0mm,
11. cable send speed:≤2m/s(
adjustable)
12. length precision:Lam≤±2‰
13. power:2.2KW 220V 50/60Hz
14. cale loaded weight:Lam≤100KG
15. machine size:L*W*H≈5m*1.8m*1.5m Packed size:4.0CBM
16. weight:≈400KG(with wood packing)
4, Device configuration:

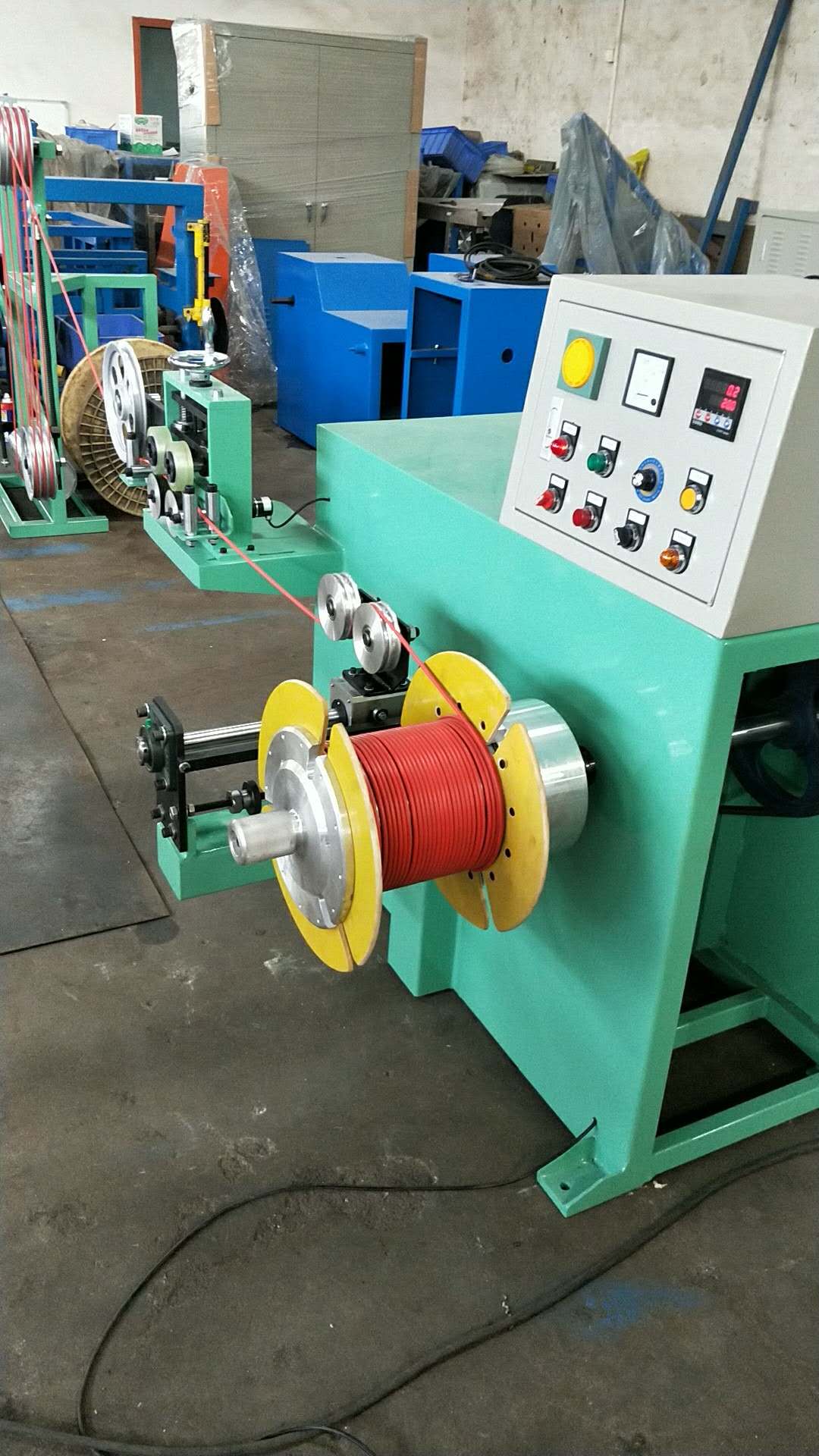

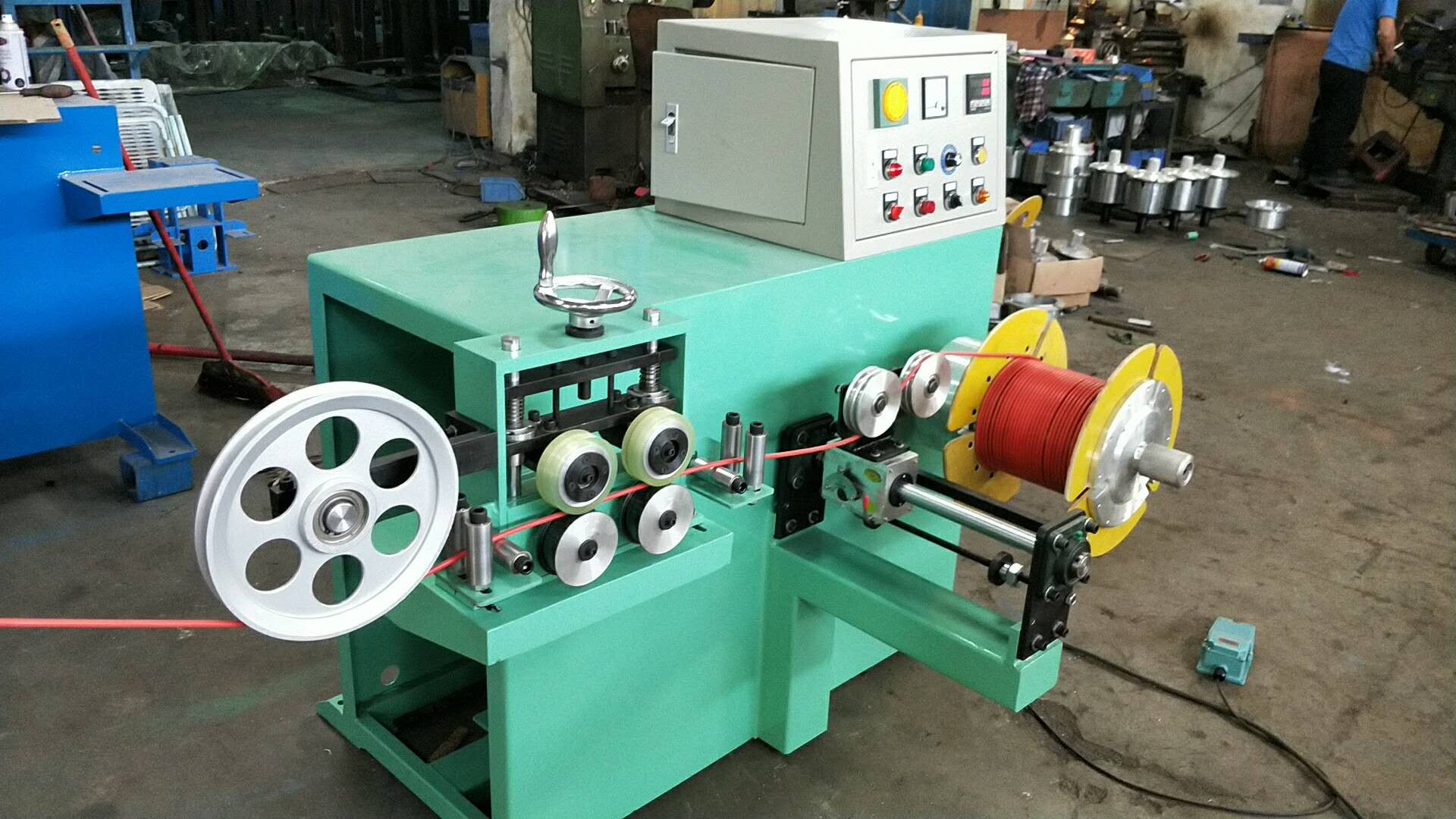

1. One cable cutting and winding host
wood packing size:1500*1000*1350mm

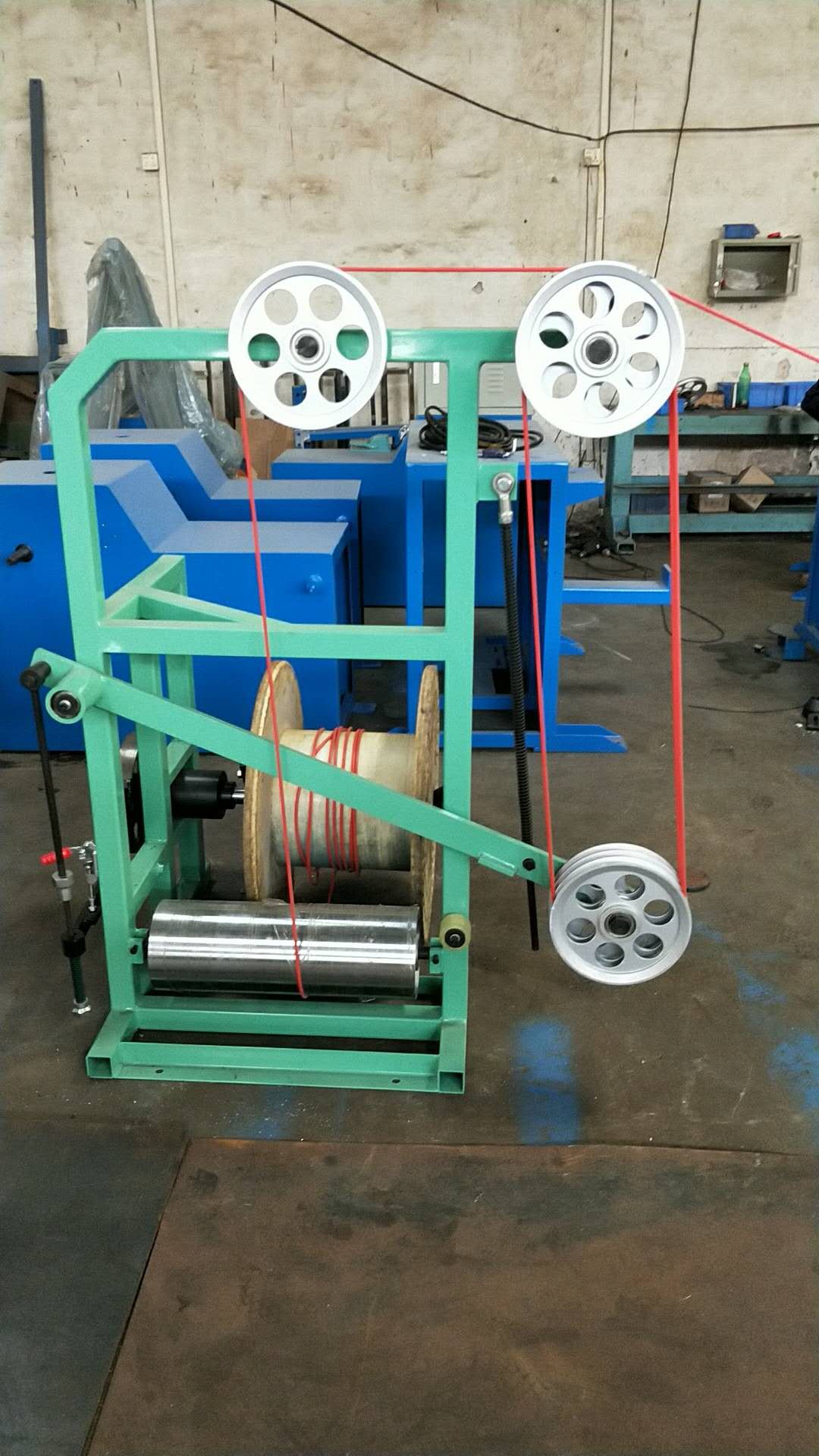

2. Lever type automatic tension paying off frame (cable diameter
700mm)
Packing size: 1250*950*1680mm
One cable cutting and winding host
The aperture of the inner ring of the optical cable can be selected
as
80mm/100mm/120mm/140mm/160mm/200mm/300mm or customized .
