Name: Telecommunications 1x2 Plc Fiber Splitter Single mode and multi mode
Brand: DAMU
Price: 1 USD

Add to Cart

Product Description

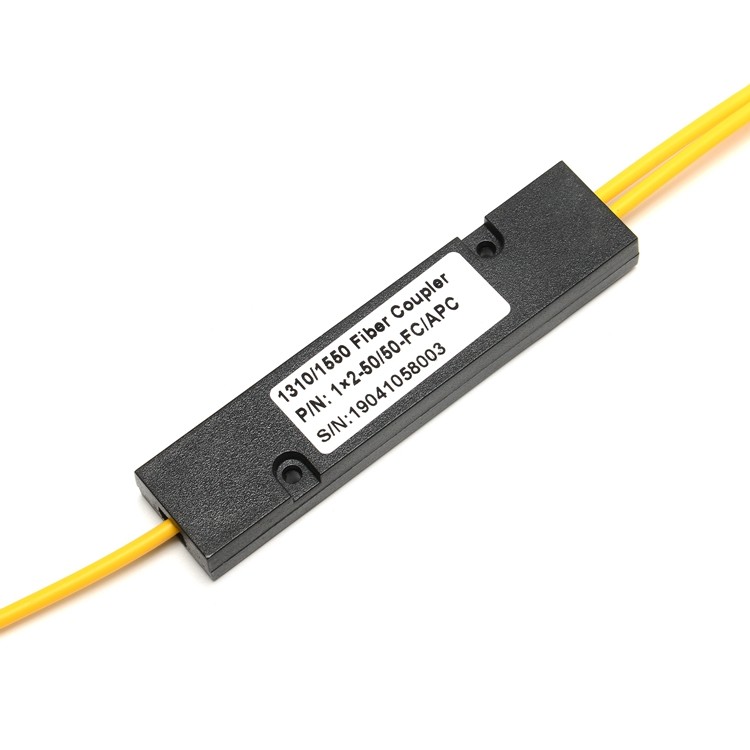

FBT Coupler Way PLC Splitters Fiber Optic Splitter 1x2 ABS PLC Splitter Low Return Loss 1x2 FC APC Fiber Optic Splitter

Description:

ABS Fiber Optic Splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.

Feature:

Low Excess loss

Various Coupling Ratio

Environment stable

Single mode and multi mode available

Application:

Long-haul Telecommunications

CATV Systems & Fiber Optic Sensors

Fiber Optic communication system

Local Area Network

Specification:

Parameters	1×2	1×4	1×8	1×16	1×32
Operating Wavelength (nm)	1310/1490/1550
Fiber Type	G657A1 or customer specified
Insertion Loss (dB)(P/S Grade)	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	17/17.4
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3
Return Loss (dB) (P/S Grade)	55/50	55/50	55/50	55/50	55/50
Directivity (dB)	55	55	55	55	55
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5
Temperature Stability (-40～85 ℃)(dB)	0.4	0.4	0.4	0.5	0.5
Operating Temperature (℃)	-40～85
Storage Temperature (℃)	-40～85
