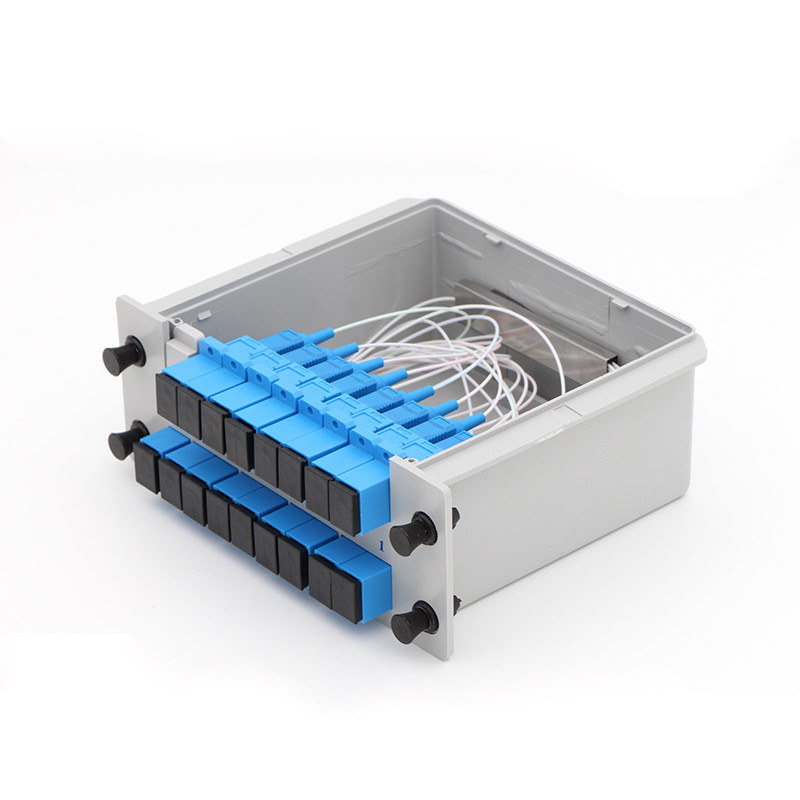

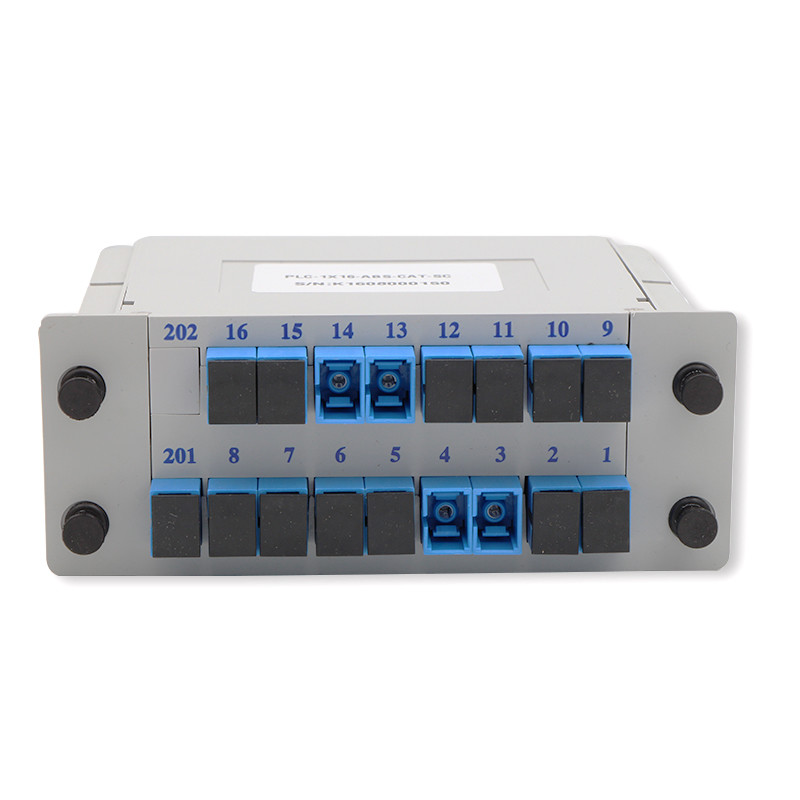

LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector

Product Description

LGX Cassette Type Optical Fiber PLC Splitter Box 1*16 with SC/UPC Connector

1. Description:

Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating
wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.

LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector

2. Specification:

1x8 PLC Splitter Casette type,SM fiber, with SC/APC connector

Features

FTTH

Monitoring

CATV System

Network Protection

Access/PON Distribution

Insertion Loss

- Test Wavelength: 1310-1550 nm

- Required Value:P Grade

- Test can be performed on any channel

Return Loss

- Test Wavelength: 1310-1550 nm

- Required Value:>55dB

- Test can be performed on any channel

Directivity

- Test wavelength: 1310-1550 nm

- Required Value:>55 dB

On Dependent Loss-PDL

- Test Wavelength:1310-1550 nm

- Required Value:< 0.2 dB

ITEM	1X2	1X4	1X8	1X16	1X32	1X64	2X2	2X4	2X8	2X16	2X32
Operating Wavelength(nm)	1260~1650
Insertion Loss (dB) Max.	≤4.6	≤7.5	≤11.0	≤14.0	≤17.0	≤21.0	≤4.5	≤8.0	≤11.7	≤14.7	≤17.9
Loss Uniformity (dB) Max.	≤0.6	≤0.6	≤0.8	≤1.2	≤1.5	≤1.8	≤0.8	≤1.0	≤1.0	≤1.5	≤2.0
PDL (dB) Max.	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3	≤0.3	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss (dB)	UPC≥50dB;APC≥55dB
Directivity (dB)	≥55
Fiber Length (m)	1.2±0.1 , (Other Requirements Can Be Provide)
Fiber Type	Corning SMF-28e, (Other Requirements Can Be Provide)
Operation Temperature℃	-40~+85

LGX Cassette Type Plc Splitter Abs Box 1x16 With SC/UPC Connector
