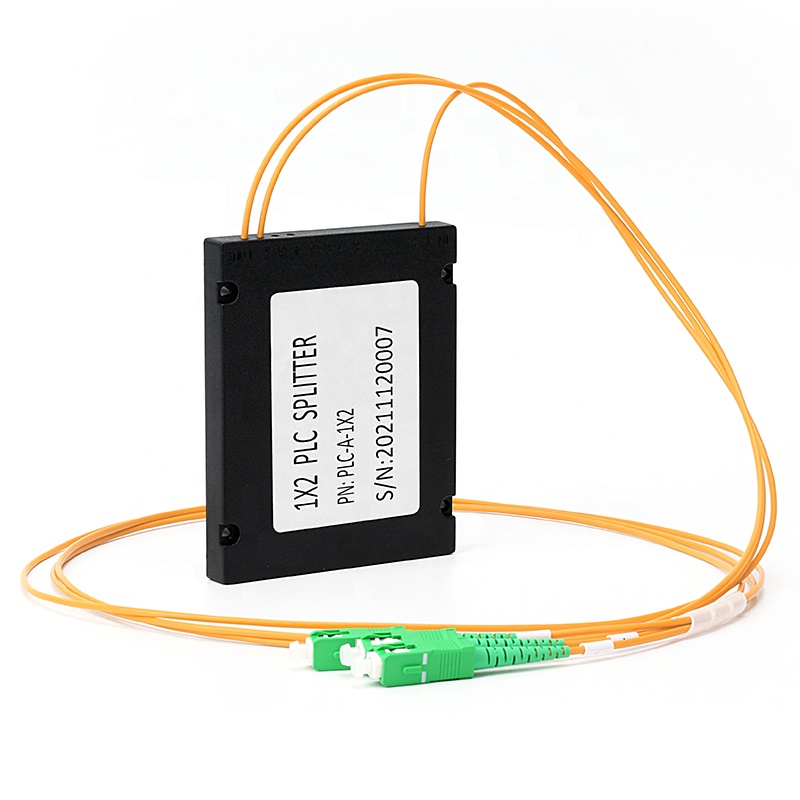

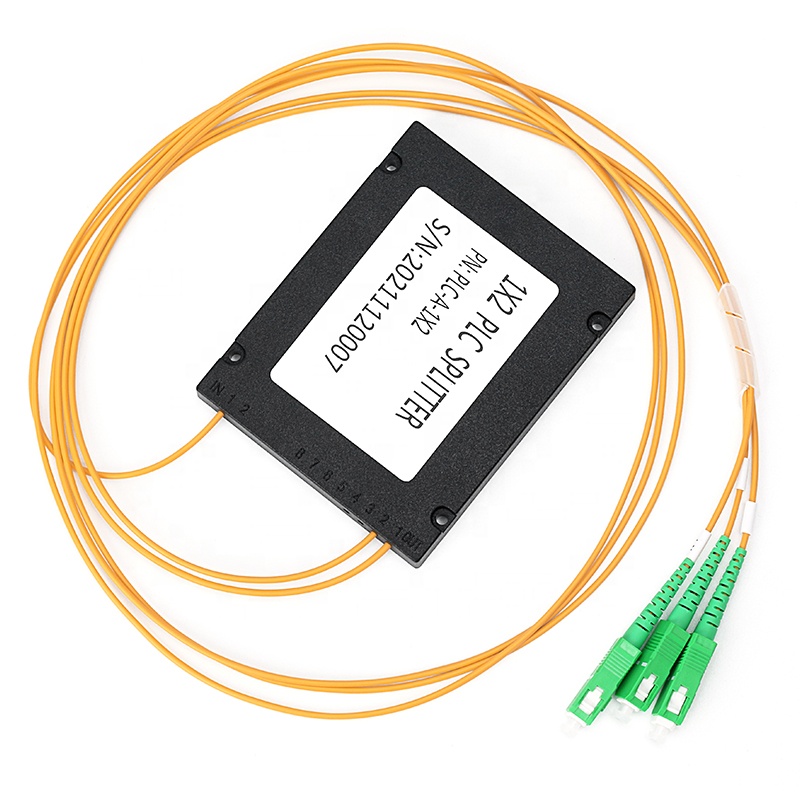

Optic SC / APC ABS Box 1x2 Fiber PLC Splitter 2.0mm Dia 1 Meter Length

Fiber Optic 1x2 SC/APC ABS Box PLC 1/2 Fiber Optic splitter 2.0mm cable 1meter 1*2

Description Of Fiber Optic PLC Splitter
Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

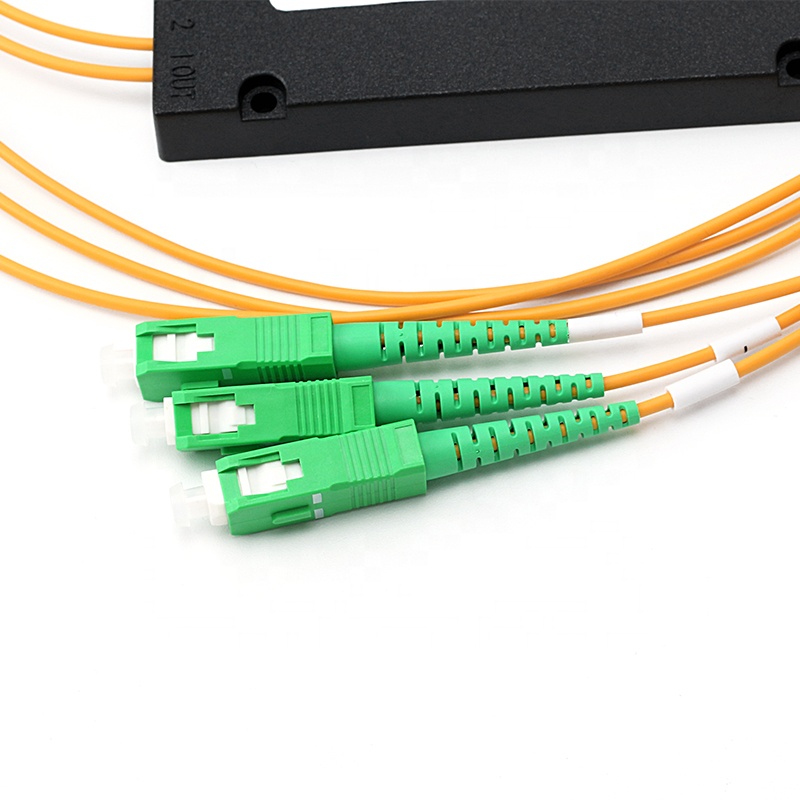

Planar Lightwave Circuit (PLC) ABS Box Type Splitter with SC/APC or SC/UPC Termination. Fabricated using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution
solution with small form factor and high reliability.

Features

 Low insertion loss

 Low PDL

 High reliability and stability

 Good channel uniformity

Applications

FTTH
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution

Item	ABS 1X2 SCAPC SPLITTER
Operating Wavelength(nm)	1260-1650
Fiber Type	G657A1 or as customers' order
Connector	SC/FC/LC
Ferrule section	UPC/APC
Insertion loss(dB)	≤24.1
Loss uniformity(dB)	≤2.5
Return Loss(dB)	≥55
Polarization Dependent Loss(dB)	≤0.4
Directivity(dB)	≥55
Temperature correlation loss	≤0.5
-40～85℃(dB)	≤0.5
Size(mm)(LxWxH)	N/A
Working Temperature(℃)	-40～85
Storage Temperature(℃)	-40～85

Advantages Of Fiber Optic Splitter

1. Adopt high strength stainless steel, pass salt spray test

2. Ferrule core is less than 0.2um

3. Adopt 100% new raw material, ROHS compliance

4. Low Insertion loss

5. Low PDL Compact Design

6. Good channel-to-channel uniformity

7. Wide Operating Wavelength: from 1260nm to 1650nm

8. Wide Operating Temperature: from -40℃ to 85℃

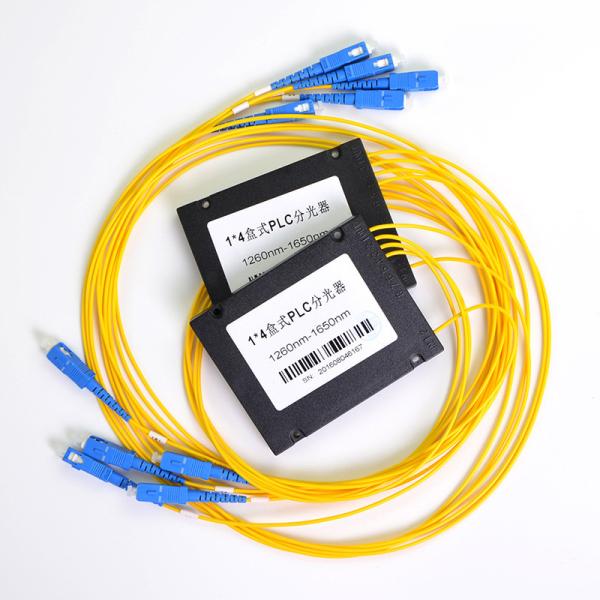

DAMU offers a variety of ABS box and cassette type splitter modules and products. PLC Splitter Modules are available in the form of either plastic module cassette (an ABS box) with ruggedized fiber jackets of 2mm and up to 3mm, or LGX metal box for plug and play splitter applications.
Customized designs are also available for customer needs, call or email us about anything you need that you don't see here. The PLC splitter family features the whole series of 1 x N and 2 x N splitter boxes and modules that are tailored for specific applications.
All splitters provide excellent optical performance and reliability that meet GR-1221-CORE and GR-1209-CORE specifications.Customized designs are also available for customer needs, call or email us about anything you need that you don't see here.
