G657A G625D 1X4 SC / UPC ABS Box Fiber Optic Splitter 2.0mm 3.0mm 1m 1.5m Cable

Product Categories

Shenzhen damu technology co. LTD

Contact Now

G657A G625D 1X4 SC / UPC ABS Box Fiber Optic Splitter 2.0mm 3.0mm 1m 1.5m Cable

Ask Lasest Price
Brand Name :	DAMU
Model Number :	*ABS 14U**
Certification :	CE
Supply Ability :	20000pcs/day

Add to Cart

Product Details
Company Profile

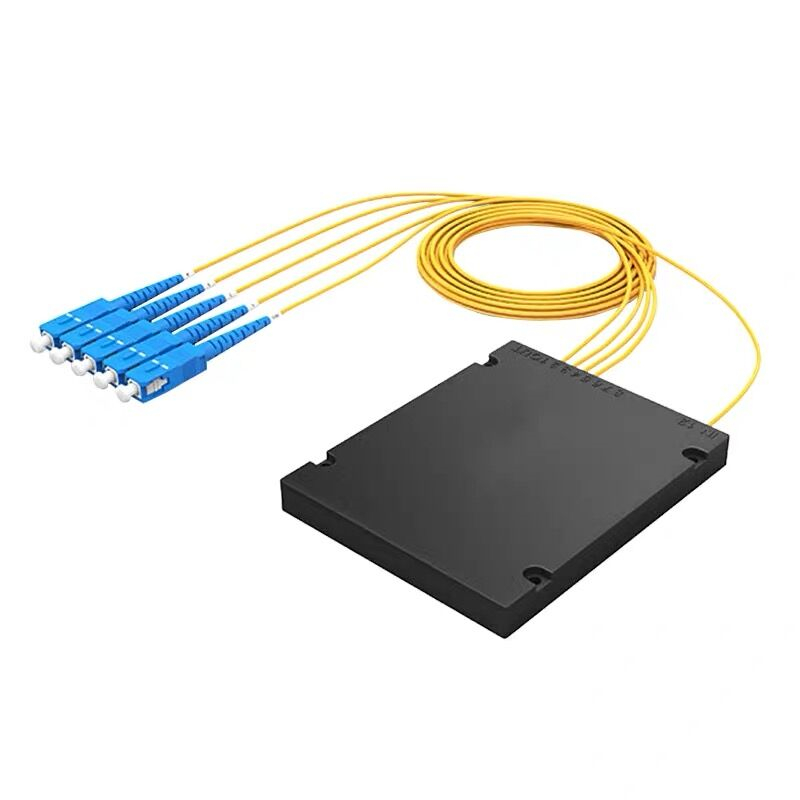

G657A G625D 1X4 SC / UPC ABS Box Fiber Optic Splitter 2.0mm 3.0mm 1m 1.5m Cable

1X4 SC/UPC ABS box type 2.0mm/3.0mm 1m/1.5m cable length G657A G625D fiber blister packing

Description Of Fiber Optic PLC Splitter
Planar Lightwave Circuit (PLC) splitter is a type of optical power
management device that is fabricated using silica optical waveguide
technology to distribute optical signals from Central Office (CO)
to multiple premise locations.

With the features of small size, wide range of operating
wavelength, stable reliability and good uniformity, It’s widely
used in PON,ODN,FTTX point to connect between termination device
and central office to achieve the signal splitter.
specification
1x4
1x8
1x16
Return loss
>55
>55
>55
Insert loss
<7.4
<10.7
<13.9
Pigtail Diameter:

0.9mm
0.9mm
0.9mm
Fiber type
G657A1
G657A1
G657A1
Fiber length
0.3M
0.3M
0.3M
connector type
SC
SC
SC
operating temperature
-40~85
-40~85
-40~85
storage temperature
-40~85
-40~85
-40~85
operating wavelength
1260~1650NM
1260~1650NM
1260~1650NM

Application Of Fiber Optic Splitter
FTTH
Passive optical networks (PON)
Local Area Networks (LAN)
Cable Television (CATV)
Test Equipment
FTTX Systems
PON Networks
CATV Links
