Applications:

1.ZrO2 Ceramic Ferrules
2.Quartz capillary
3.Glass materials
4.Stainless steel and titanium alloy
5.Colophony material

Descriptions:

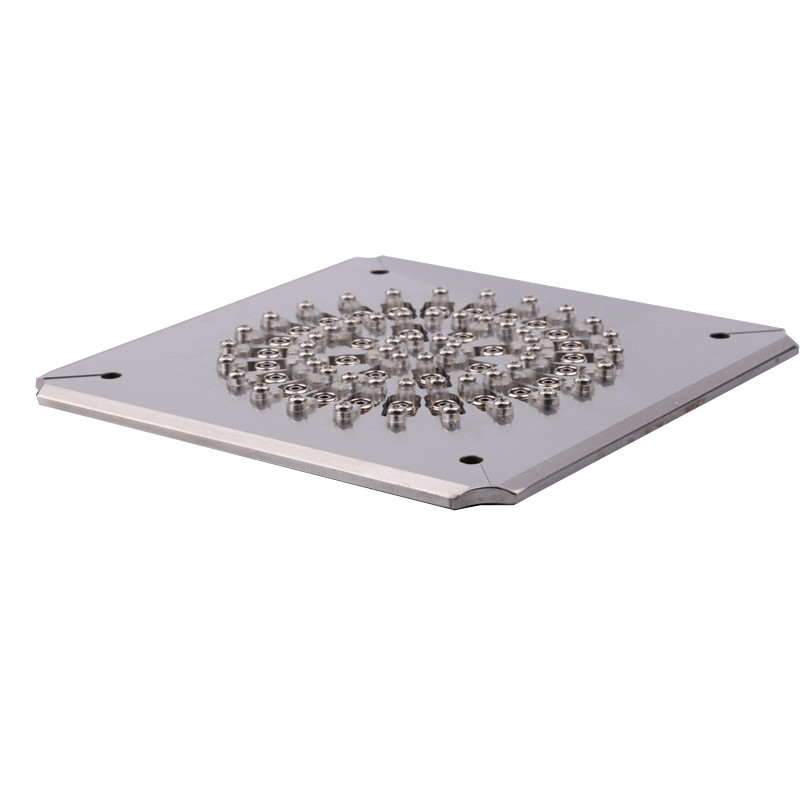

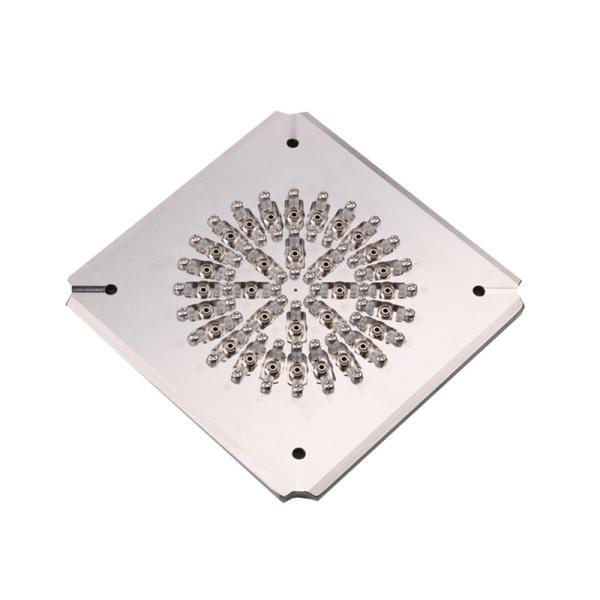

The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass ratewith Interference> = 98% (100% Typical, according to IEC),
This fiber polishing fixture/jig is high stability and good surface quality.Fiber polishing fixture using high quality steel with
heated treat, the hardened steel S2316 providing long service life. This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.
Features:
1. Designed for polishing manner with planet tray
2. Using a new I.P.C jig technology (every ferrule is pressed singly) and making the finished yield rate much higher
3. Dual APC &UPC polishing and Accommodating most styles of connectors
4. High efficiency to deal with all kinds of connectors. The maximum polishing quantity for MU and LC connectors is 48 pcs; And maximum polishing quantity for SC, FC and ST connectors is 36 pcs
5. The polisher was made by high quality stainless steel with heat treatment and it is high accuracy and durability
6. Quick to change jigs, Easy and flexible to operate
7. APC return loss as low as -70 dB, UPC return loss as low as -60 dB, Insertion loss 0.2 dB typical
8. Super centering accuracy
9. Excellent connector end-face polishing quality
