OM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick Connector

Fast Connector mechanical SC APC UPC Fiber Optic Quick Connector For FTTH Drop Cable Field Termination OM1 OM3 FTTH Fast Connector , Field Termination Sc Apc Quick Connector

Feature

SC fast connector allow you to terminate a fiber in short time. The fast connect

is a pre-polished connector which uses mechanical clamping and aligning of a

cleaved fiber end which is inserted into the connector body. The fast connect

is available in both singlemode andmultimode (OM1 and OM3 10Gig)and a

variety of connector types and can be terminated onto 250um and 900um

coated fibre as well as 2x3 mm and 2x1.6 mm jacketed cord.

Optical Characteristics

Category	Specification		Remarks
Aoolicable for	Drop cable.Indoor cable
Fiber mode	Single mode or Multi mode
Operation time	S	About 50(no fiber cut)
Insertion Loss	dB	≤0.5
Insertion Loss Typical value	dB	0.3
Return Loss	dB	≥50
Fastening strength of naked fiber	N	≥5
Tensile strength	N	≥50
Reusable	Time	≥10 times
Operating Temperature	℃	-40～+85
On-line tensile strength(20N)	dB	ΔIL≤0.3
Mechanical durability(500 times)	dB	ΔIL≤0.3
Drop-off test(drop-off height4m,once per direction,totally 3 times)	dB	ΔIL≤0.3

Applications

Patch panels
Distribution frames
Maintenance or emergency restoration of fiber networks
FTTH Outlets
Connection at the desk for LAN environments
Fiber Optic Patch Cord & Pigtail
Telecommunication Devices
Data Communications Networks
Optical Fiber LAN and Access Network
Industry and Military Applications

Mechanical Performance Requirements

Category	Specification
Category	Condition	IL Variation	RL Variation	Appearance
Impact	Height: 4m； 1 drop each axis； 3 cycles	≤0.5	≤5	No mechan ical dama ge, like deformat ion, crac king and untight
Vibration	Frequency: 10 ～ 50HZ； Sweep: 45 times / min； amplitude: 0.75mm； Duration:30min each axial	≤0.5	≤5
Torsional	Pull:15N； The distance between Loading location and fast connector: L = 22-28cm；Rate:10times / min. Times: 200	≤0.5	≤5
Tensile	Pull:50N； The distance between Loadi ng location and fast conn ector: L = 22-28cm； Duration:1min.	≤0.5	≤5

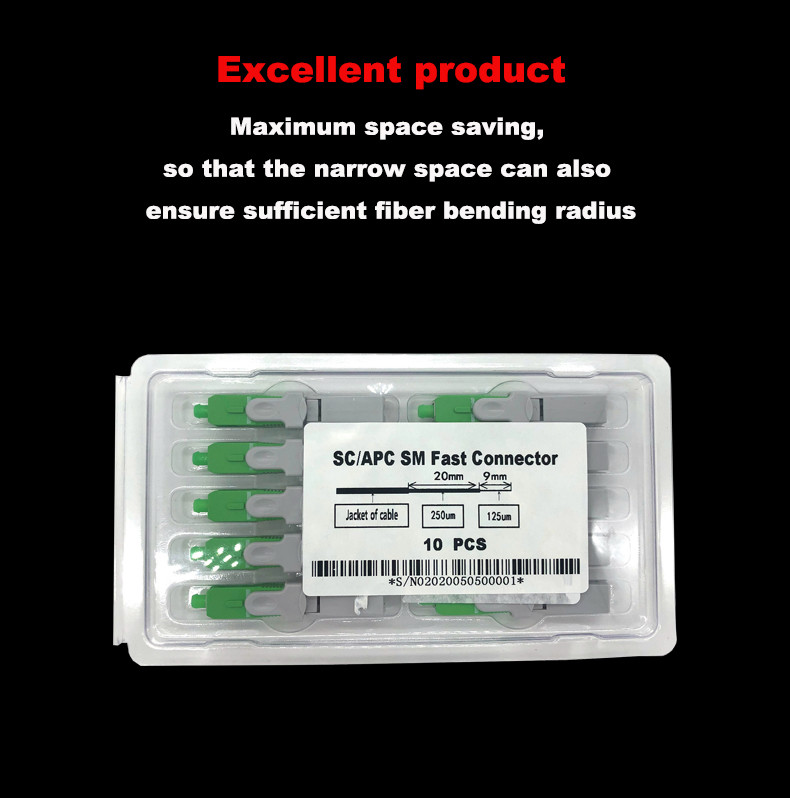

Product Packaging Information

box	Size(CM)	44X26X19
	QTY(Gift Box/Box)	500
	N.W(KG/Box)	5
	G.W(KG/Box)	5.2
