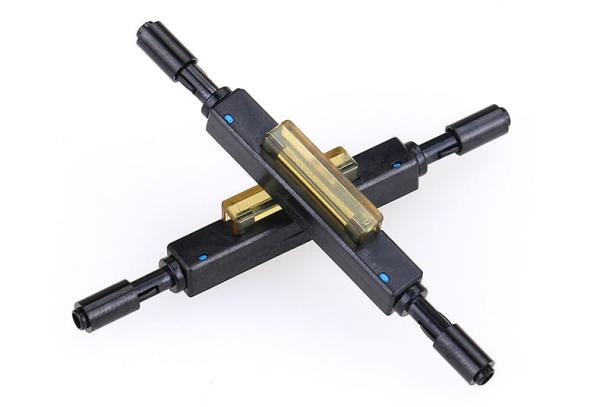

Mechanical Fusion L925BP Fiber Cable Splice For Field Assembly

L925BP Fiber Optical Mechanical fusion splicer for Drop Cable Splice for Field Assembly

Description

L925BP is drop cable fast connector, which can be used for the fiber optic 2*3mm drop cable field cold junction. With the fixed
buckle, the protecting housing and the optical fiber connection module, L925BP can be an ideal tool for the drop cable connection
and maintenance.

Application

* Fiber-to-the-Subscriber (FTTx) applications
* Telecommunication Network
* Data Communication Network
* Local Area Network (LAN), Wide Area Network (WAN)
* Fiber Optic Distribution Frame, Cabinet, OTB, ONU
* Temporary jointing, Emergency repairs, Temporary repairs
* For the splice of cable on the altitude, ground and underground

Feature
* Unique box type crimping technology
* Protective durable housing
* Precision metal alloy components coaxial autocollimator on the
core, excellent durable optical performance
* Fiber axial solid fit, reducing the performance degradation
caused by the loss of matching fluid
Item
L925BP Mechanical Splicer
No. of Fiber
1
Fiber Type
SMF & MMF
Fiber Diameter
0.25/0.9mm; 2*3mm drop cable
Function
Mechanical connection of optical fibers
Insertion Loss
≤ 0.15dB (1310nm & 1550nm)
Return Loss
≥40dB
